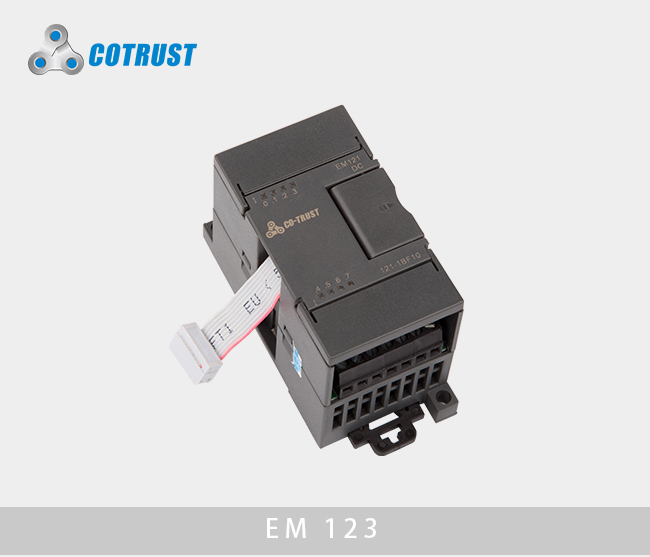

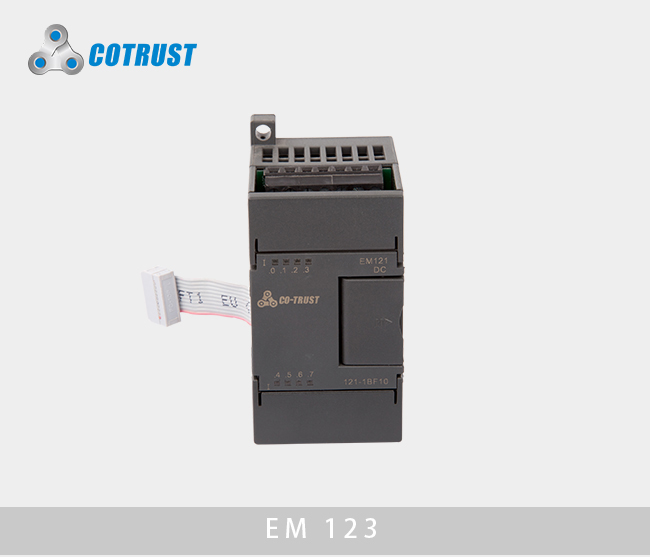

Digital I/O,4DI/4DO,24VDC,Transistor output,0.75A.Isolation.

Order No.：CTS7 123-1BF10

Specification：4DI/4DO, Transistor output

Product Description

Order Data

Specification	Order No.
CTSC-100 EM123 Digital I/O Module, 4DI×4DO,24VDC	CTS7 123-1BF10

Technical Spec

Performance Parameters

Features	4 Inputs/4 Outputs 24V DC
Order No.	CTS7 123-1BF10
Physical Features
Dimension(WHD)	46×80×62mm
Power Consumption	2W
Input Features
Number of Inputs	4
Input Type	Sink/Source
Input Voltage
Rated Voltage	24V DC
The Maximum permissible Voltage	30V DC
Surge Voltage	35V DC， 0.5 second
Signal "1"	15～30V
Signal "0"	0～5V
Isolation
Optical Isolation	500V AC， Duration: within 1 minute
Number of Isolation points per group	4
The longest Input Delay	4.5 millisecond
Sink Current	Max: 1mA AC
Length of Cable
Unshielded	300 m
Shielded	500 m
Simultaneous Inputs
40℃	4
50℃	4
Output Features
Number of Outputs	4
Type of Output	Solid－MOSFET
Output Voltage
Rated Load Voltage Range of Voltage(Permissible) Signal "1" Signal "0"	24V DC 20.4～28.8V DC Minimum: 20V DC Maximum: 0.1V DC（10K ohm load）
Output Current
Signal "1" Number of Output Groups Number of Outputs per group Simultaneous Outputs Maximum Current per group Lamp Load Contact Resistance Peak Current per point Surge Current（Max）	0.5A 1 4 4 2A 5W 0.3 Ω 10 microamp 8A，100 millisecond
Isolation	Optically coupled isolation，500V AC，duration: within 1 minute
Number of Isolation Points Per group	4
Output Delay
Off to On On to Off	Max: 50 microsecond Max: 200 microsecond
Length of Cable
Unshielded	150 m
Shielded	500 m
+5V DC Consumption Current	54 mA

Installation

Size Diagram:

Wiring Diagram:

[
