Precision drive - high-performance servo drive system

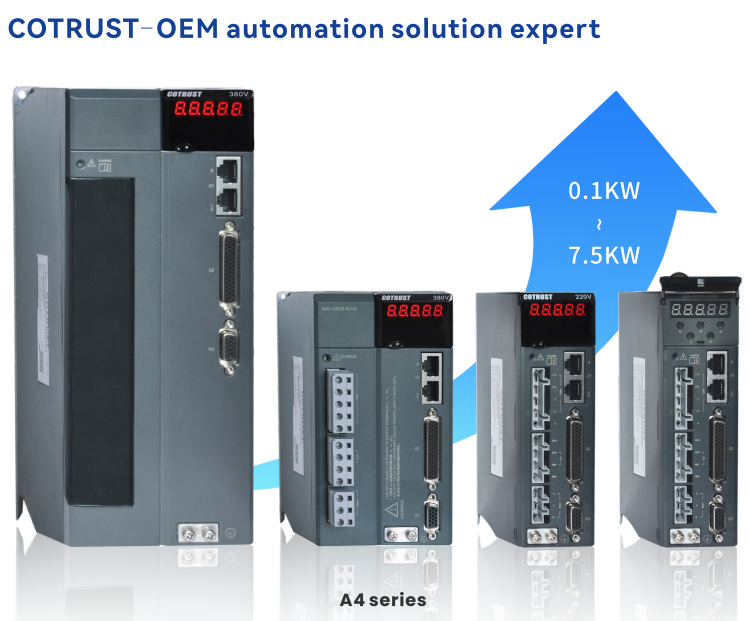

COTRUST high-performance servo drive system includes A4 series AC servo and matching motor. Cooperation with COTRUTS multi-axis motion control PLC ,using COTRUST motion control library, can greatly improve the ease of use and operation stability of the co-service system, suitable for some complex control systems need positioning, synchronization, interpolation functions.
A4S series AC servo can support CANopen protocol, and can be connected with COTRUST CTH300, CTH200, CTMC, CTSC-200 and other hosts to form a CANopen bus-based control servo system. The configuration is simple and convenient, the system control anti-noise ability is strong, with outstanding real-time and flexibility.
A4N series AC servo can form a comprehensive motion control platform CoMotion with COTRUST CTH3-C series motion controller and Copanel series HMI. With 100Mbps high-speed motion bus EtherCAT, rich motion control instructions, electronic gear/electronic CAM synchronization functions can be realized. At the same time with CNC machine tool control function, support five axis linkage.
Cooperation with our high-performance PLC products or motion controllers based on EtherCAT, CANopen and other bus can be widely used in textile machinery, food processing machinery, packaging machinery, glass and woodworking machinery, electronic equipment, printing machinery, injection molding machines and any other industries.
A4S standard servo driver
Power range: 100W-7.5KW
Speed ring bandwidth 1.2KHz
Support high speed pulse input control mode, differential mode 500KHz, collector mode 200KHz
Support MODBUS RTU and CANopen communication protocols
Optional support 2500 line incremental encoder and 17Bit bus absolute encoder
Support vibration suppression, rigid class selection, inertia recognition
A4N standard servo driver
Power range: 100W-7.5KW
Speed ring bandwidth 1.2KHz
Support MODBUSRTU and EtherCAT communication protocols;
Support two channel probe assist function, latched position
Optional support 2500 line incremental encoder and 17Bit bus absolute encoder;
Support vibration suppression, rigid class selection, inertia recognition.
