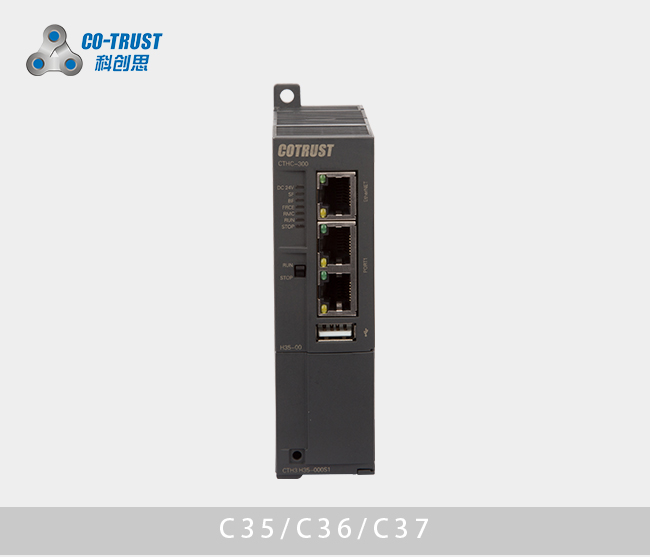

C37-00/C36-00/C35-00 Motion Control CPU

C37-00:32MB program memory/data memory,with CNC function,multi-axial motion control function.RS485-MODBUS,EtherCAT port,EtherNET port
C36-00:32MB program memory/data memory,with CNC function,RS485-MODBUS,EtheCAT port,EtherNET port
C35-00:32MB program memory/data memory,RS485-MODBUS,EtherCAT port,EtherNET port

Order No.:CTH3 C37-000S1/C36-00/C35-00

Specification:32MB program memory,with CNC function,multi-axial motion control function,RS485-MODBUS,EtherCAT port,EtherNET port/32MB program memory/data memory,with CNC function,RS485-MODBUS,EtheCAT port,EtherNET port /32MB program memory/data memory,RS485-MODBUS,EtherCAT port,EtherNET port

Product Description
Product NameSpecificationsOrder No.
C35-00CTH300-C motion control CPU, 32MB program and data space, 32KB retentive data, 55M expansion bus;1 Modbus RS485 port, 1 EtherCAT port, 1 EtherNET port, 1 USB port.CTH3 C35-000S1
C36-00CTH300-C motion control CPU, 32MB program and data space, 32KB retentive data, 55M expansion bus;1 Modbus RS485 port, 1 EtherCAT port, 1 EtherNET port, 1 USB port. Support SoftMotionCTH3 C36-000S1
C37-00CTH300-C motion control CPU,32MB program and data space, 32KB retentive data, 55M expansion bus;1 Modbus RS485 port, 1 EtherCAT port, 1 EtherNET port, 1 USB port, Support SoftMotion, CNC.CTH3 C37-000S1



Technical Spec

One Platform, Two Frameworks

CTH300-C CPU and CTH300-H CPU adopt a same hardware platform and share one extension module. CTH300-C is based on CODESYS software framework good at motion control; and CTH300-H CPU is based on MagicWorks software framework that is easier to use and good at logic process control.


Excellent Performance

Built-in Cortex-A8 processor, CTH300 CPU boasts a computing speed higher than its counterparts;

CTH300 system supports diversified extension modules, whose maximum I/O scale up to 4096DI/DQ and 1024AI/AQ; The 55Mbps back plane bus ensures the high-speed transmission between the CPU and the extension modules.


Multiple Fieldbus

CTH300 PLC support multiple fieldbuses and meet the requirement need to connect to peripheral equipment , including Ethernet, EtherCAT, CANopen, PPI/MPI and Modbus.


Environmental Adaptability

PCB mould-proof, damp-proof and salt-mist-proof paint;

Conform to the IEC 61000 electromagnetic compatibility;

Conform to the IEC 60018-2 environmental testing;


Fully-isolated System

All the signal modules and function modules of CTH300 CPU adopt isolation technique. The power supply, bus, input and output of the whole system are isolated;

With the digital filtering, the digital input module boasts strong anti-jamming capability;

Digital transistor output module is equipped with the over current and short-circuit protection system;

Analog module signals are fully isolated with strong anti-jamming capability and 16-digit precision.
