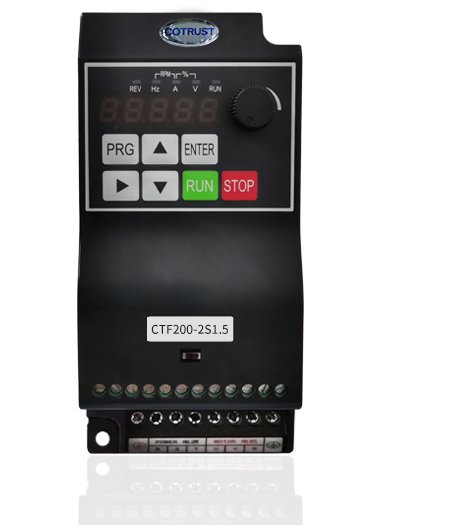

CTF200 mini economic inverter is positioned as a common application of small power OEM matching market, adopting vector V / F control technology.
Applications
Fan water pump, packaging machinery, food machinery, textile machinery, automatic assembly line, etc
CTF200 Series model and technical data
| Type | Rated Capacity | Rated Input | Rated Output Current(A) | Adapter |
| (KVA) | Current (A) | Motor(KW) | ||
| Single-phase power supply 200～240V 50/60Hz | ||||
| CTF200-2S0.4 | 1 | 5.4 | 2.3 | 0.4 |
| CTF200-2S0.7 | 1.5 | 8.2 | 4 | 0.75 |
| CTF200-2S1.5 | 3 | 14 | 7 | 1.5 |
| Three-phase power supply 380～480V 50/60Hz | ||||
| CTF200-4T0.7 | 1.5 | 3.4 | 2.1 | 0.75 |
| CTF200-4T1.5 | 3 | 5 | 3.8 | 1.5 |
| CTF200-4T2.2 | 4 | 5.8 | 5.1 | 2.2 |
