- Product Description
-
Specification
Order No.

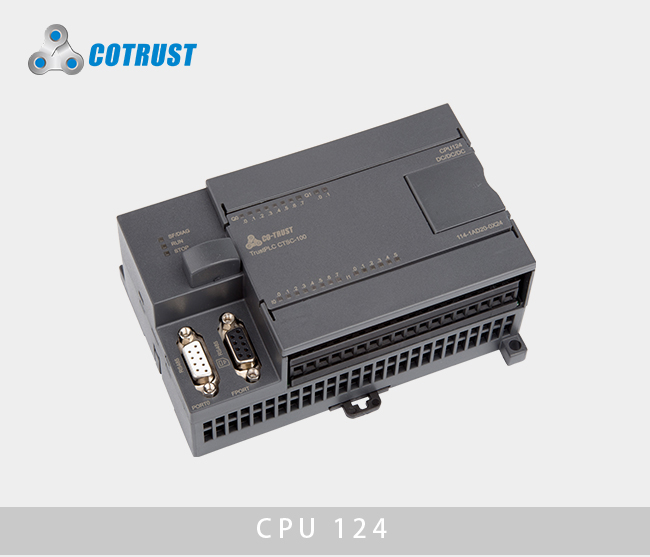

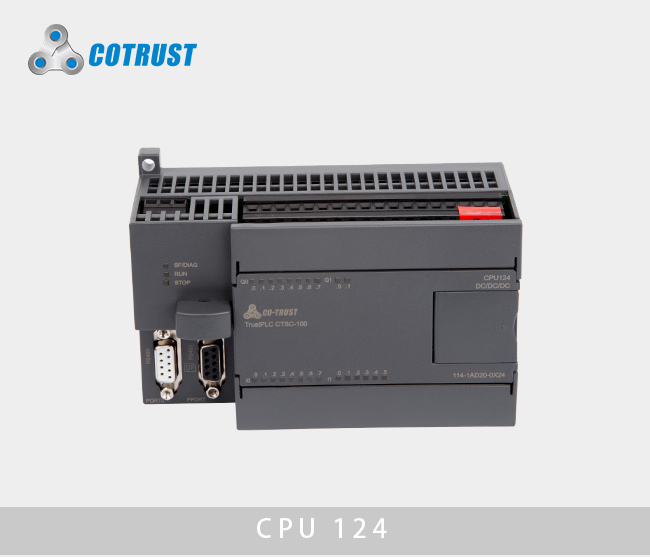

CPU124，220VAC power supply,14DI×24VDC,10DO×Relay,dual-channel communication
CTS7 114-1BD20-0X24
- Technical Spec
-
Performance Parameters
Physical Features
Dimension(W×H×D)
137×80×62mm
Power Dissipation
10W
Memory Features
Program Memory
12KB,8KB for common user，4KB for encrypted users
Data Memory
8KB
Power-failure retention power
button batter
General Features
Timers in total
1ms
10ms
100ms
128（T0-T127）
4
16
108
Counters in total
128(button battery)
Internal Memory Bits
256(button battery)
Time interrupts
2×1ms resolution
Edge interrupts
4 rising edges/ falling edges
Boolean execution speed
0.5µs
Float execution speed
16µs
Runtime clock
√
Integrated Communication Features
Communication ports
2 port，PORT0:PPI， RS485 PWL，
FPROT: free port，RS485
PPI Baud Rate
9.6, 19.2kbps
Baud Rate of Freeport
1.2k to 115.2kbps
Maximum cable length per segment
Isolated repeater applied
Isolated repeater unapplied
When it is 1200 m, 38.4k.
50 m
Maximum number of stations
4 stations per segment,32 stations per network
Maximum number of masters
16
Point to point (PPI Mater Mode)
×
Power Function
Input Voltage
85-264VAC(47-63HZ)
+5V power for the extended bus
500mA
24 VDC Sensor Power supply
150mA
I/O Features
Number of integrated Digital inputs
14
Input type
Sink/Source
Number of integrated Digital outputs
10
Output type
Relay,dry contact
Digital I/O mapping area
128 (64 inputs/64 outputs)
Analog I/O mapping area
32(16 inputs/16 outputs)
Maximum number of expandable I/O
modules
3
Maximum number of digital I/O
120
Maximum number of analog I/O
12AI/6AO
Pulse catch inputs
14
Digital Input Features
Integrated Digital Input
14
Input type
Sink/Source
Rated Voltage
24V DC
Maximum continuous permissible
voltage
30V DC
Logical 1 Signal (minimum)
Logical 0 Signal (Maximum )
14 VDC，2.5mA
5 VDC，1mA
Isolation( field side and logical circuit)
Optical isolation(Galvanic)
Isolation group
√
500V AC，1 minute
refer to the Terminal Identification
Simultaneous Inputs
14
Maximum cable length
Shielded
Unshielded
500 m(standard input)、50m(high-speed counter input)
300 m( standard input)
Digital Output Features
Number of integrated digital output
10
Output type
Relay,dry contact
Maximum rated current of each
output
Surge Current
2A
5A，4S@10%
Lamp load(Max)
5W
On- state resistance
0.3 ohm，Max: 0.6 ohm
High-speed pulse output
2×50KHz， Q0.0、Q0.1and Q0.2，directionless output；
Support MC_PTP_R/MC_SPEED_CTRL etc. of CPU,
do not support PTO/PWM of programming software
Simultaneous output
8
Two parallel outputs
only when the two outputs are in the same group
Maximum cable length
Shielded
Unshielded
500m(standard output)
150m(standard output)
Accessories
1、Programming cable：CTS7 191-USB10；
2、Programming card：CTS7 291-PC001；
3、Differential module：CTS7 291-EC001；
4、Button batter：2032Button,we do not supply
- Installation
-
Size Diagram:
Wiring Diagram
Definition of Communication PortConnector
PIN
FPORT（RS485)
PORT0(RS485)
1
Shell grounded
Shell grounded
2
Logical
Logical
3
RS-485 Signal B
RS-485 Signal B
4
RTS(TTL)
RTS(TTL)
5
RTS(TTL)
RTS(TTL)
6
+5V，100Ω resistances in serie
+5V，100Ω resistances in serie
7
+24V
+24V
8
RS-485 Signal A
RS-485 Signal A
9
/
/
Shell
Shell grounded
Shell grounded
