- Product Description
-
Order Data
Product Name
Specification
Order No.

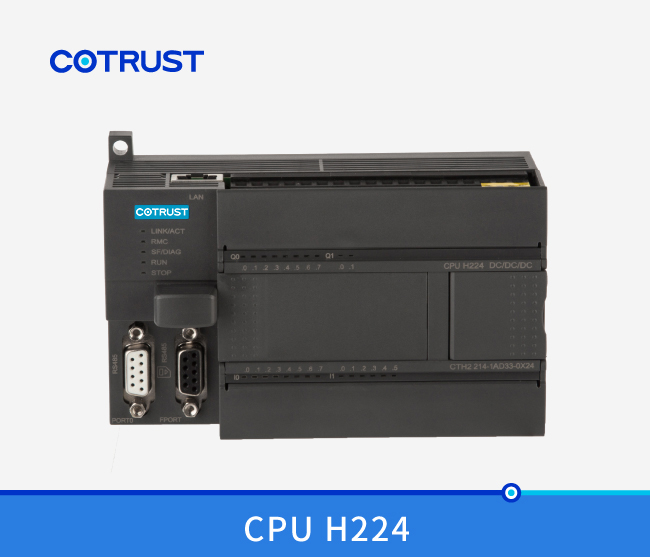

CPU H224
Program memory 12KB/Data memory 8KB,power supply 24VDC, 14DI/10DO Transistor output,0.5A,1 PPI,1 FPORT,1 Ethernet port,3*50KHz motion control output
CTH2 214-1AD33-0X24
CPU H224 Program memory 12KB/Data memory 8KB,ower supply 220VAC,14DI/10DO Relay output,2A,1 PPT,1 FPORT,1 Ethernet port.
CTH2 214-1BD33-0X24
- Technical Spec
-
Performance Parameters
Function Type
Description
Dimension(W×H×D)
H224/H224X:137×96×71.3mm
H226L/H226XL:196.5×96×71.3mm
H224/H226L
H224X/H226XL
Bit instruction processing speed
0.22µs
0.15µs
Float instruction processing speed
12µs
8µs
Program memory
8+4KB
H224X: 12+4KB
H226XL: 24+48KB
Data memory
8KB
H224X: 8+100KB
H226XL:10+100KB
Power failure protection
The max.8KB
The max.10+100KB,200 hours
Ways to power failure protection
FlashROM
Supercapacitor+Battery
Digital I/O
128DI/128DQ
640DI/640DQ
Analog I/O
32AI/32AQ
194AI/194AQ
Bit storage area(M)
256bit
Local memory(L)
64byte
Sequential control relay(S)
256byte
Pulse capture input
14
14
High speed counter
4*50KHz
(HSC0~HSC3)
Support 4 singal phase input,1 AB phase input(HSC0 supportAB phase)
※only support high speed count mode 0 and 9
6*50KHz
(HSC0~HSC5)
4*30KHz
(HSC3 and HSC5 both not support dual phase)
High speed counter power input
18~26V
High speed pulse output(Transistor output)
motion control output:3*50KHz
Q point output:Q0.0~Q0.2
motion control output:2*50KHz
PTO/PWM:2*50KHz
Q point output:Q0.0~Q0.1
Timer interruption
2,1ms
Edge interruption
4 rising edge/4 falling edge
Max extension module
7
BD extension board
1
System indicator lamp
SF indicator lamp(red):ON=error,OFF=normal
RUN indicator lamp(green):ON=run,OFF=stop
STOP indicator lamp(orange):ON=stop,OFF=run
RMC indicator lamp(green):ON=allow,OFF=forbid
LINK/ACT indicator lamp(green):ON=link,flash=transfer,OFF=stop
Analog potentiometer
--
2,8-bit resolution
Real-time clock
Build-in,precision ±120s/m.
Programming card
support(download program to PLC can choice “coverage/no coverage” “program block/data block” )
Battery card
--
Memory card
--
support
Timer
Total amount:256
1ms:4
10ms:16
100ms:236Total amount:512
1ms:4個
10ms:272
100ms:236
Counter
256(Power failure protection)
H224/H226L
H224X/H226XL
RS485 communication
Communication protocol
H224/H224X:2 RS485 port,1 PPI,1 FPORT
H226L/H226XL:2 RS485 port,1 PPI/FPORT
PPI baud rate
baud rate:9.6Kbps、19.2Kbps、187.5Kbps
FPORT baud rate
FPORT baud rate:1.2Kbps~115.2Kbps
Maximum cable length
Isolated repeater applied:When it is 1000 m, baud rate is 187.5Kbps; when it is 1200 m, 38.4Kbps.
Isolated repeater unapplied:50m
Maximum number of stations
32 stations per segment,126 stations per network
Maximum number of master stations
32
Interface
2 RS485 port
Isolated
--
Digital Input Features
H224/H224X
H226L/H226XL
Number of integrated digital input
14
24
Input type
Sink/ Source
Rated voltage
24VDC
Voltage input
20.4~28.8VDC
Surge voltage
35VDC,last 0.5s
Logical 1 Signal (minimum)
15 VDC,2.5mA
Logical 0 Signal (Maximum )
5 VDC,1mA
Maximum permissible leakage current
1mA
Filtering input
H224 and H226Lsupport 3.4ms,6.4ms;H224X and H226XL support 0.2ms,0.4ms,0.8ms,1.6ms,3.2ms,6.4ms,12.8ms,default 6.4ms
Isolated(field side to logical circuit)
Isolated groups
500V AC,1 minute
refer to the Terminal IdentificationSimultaneous inputs
14
24
Maximum cable length
Shielded
Unshielded
500m(standard input),50m(high-speed counters input)
300m(standard input)
Digital Output Features
Output type
Transistor
Relay
H224/H226L
H224X/H226XL
H224/H226L
H224X/H226XL
Type
MOSFET,Source
dry contact
Rated voltage
24VDC
24VDC or 110V/220VAC
Voltage input
20.4~28.8VDC
5~30VDC:5~250VAC
Surge voltage(Maximum)
8A,100ms
5A,4s@10% duty ratio
Rated current(maximum)
0.5A
2.0A
Rated current(maximum)
6A
8A
lighting load(maximum)
5W
DC 30W,AC 200W
On-Resistance
0.3Ω,max 0.6Ω
0.2Ω
Isolated(field side to logical circuit)
500VAC,1 minute
1500VAC,1 minute
Delay output
off to run
Transistor H224/H226L:max .15μs
Relay H224/H226L:max .50μs
TransistorH224X/H226XL:2μs(Q0.0, Q0.1),max .15μs
Relay H224X/H226XL:max .10ms
Run to off
Transistor H224/H226L:max .130μs
Relay H224/H226L:max .200μs
TransistorH224X/H226XL:10μs(Q0.0, Q0.1),max .130μs
Relay H224X/H226XL:max .10ms
Service time
--
10,000,000(non-loaded)
Service time
100,000(2A)
Simultaneous output
H224/H224X:10
H226L/H226XL:16
Parallel output
no
yes
Maximum cable length
Shielded
500m
Unshielded
150m
- Installation
-
Size Diagram
Wiring Diagram
