- Product Description
-
Order Data
Order Data Order No. EBH-AMS: 2*12Bit precision voltage input, 1*12Bit precision voltage/current output. CTH2 AMS-03S1-EB EBH-AMS: 4*12Bit precision voltage input, 2*12Bit precision voltage output. CTH2 AMS-06S1-EB EBH-AMS: 4*12Bit precision voltage input, 2*12Bit precision current output. CTH2 AMS-06S2-EB
- Technical Spec
-
Performance Parameters
Features
CTH2 AMS-03S1-EB
CTH2 AMS-06S1-EB
Analog input features
Power supply
bus 5VDC，less than 200mA
Input number
2
4
Input type
Single terminal voltage input
Input range
±10V
Data format
-32000 ~ +32000
DC input resistance
>100KΩ
Max. Voltage input
30VDC
Resolution
11bit+sign bit
Isolation
-
Precision
Bad status(0-55゜)
±2.5% full scale
Normal status(25゜)
±1.0% full scale
Repeatability
±0.05% full scale
Analog to digital
125ms
Transfer principle
Σ-Δ
Step response
Max 250ms
Noise suppression
Normal value：-20dB@50Hz
Analog output features
Output number
1
2
signal range
voltage
0-10V
current
0-20mA
-
Data format
0 ~ +32000
Resolution
LSB value
voltage
2.50mV
current
5.00μA
-
Isolation
-
Precision
Bad status（0-55゜）
voltage output
±2% full scale
current output
±3% full scale
-
Normal status（25゜）
voltage output
±1% full scale
current output
±1% full scale
-
stable time
voltage output
less than 50μs
current output
less than 100μs
-
Max drive output
voltage output
≥5000Ω
current output
≤500Ω
-

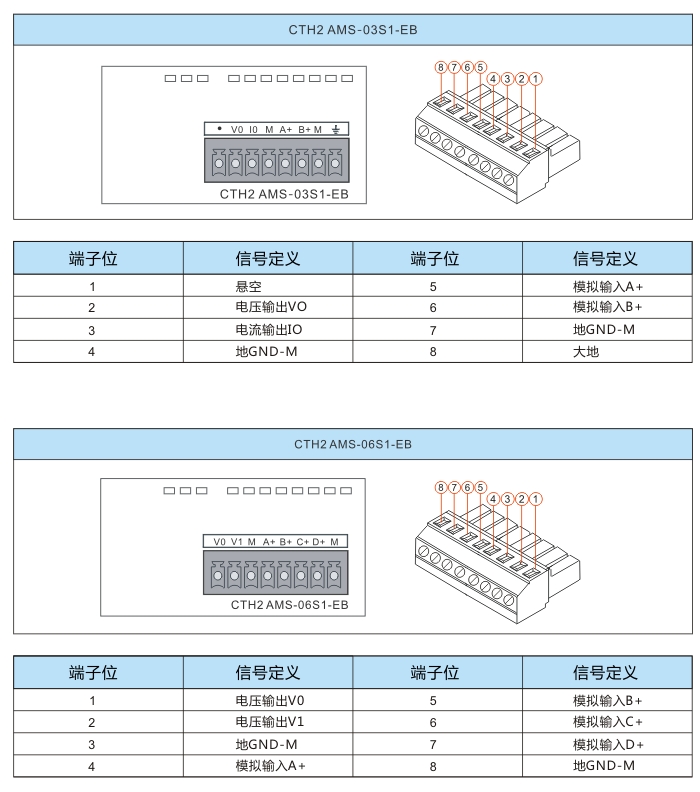

- Installation
-
