- Product Description
-
Order Data
Order Data Order No. Digital output module，Transistor output, 8*24VDC, 0.5A CTH2 222-1BF32 Digital output module，Transistor output, 16*24VDC, 0.5A CTH2 222-1BH32 Digital output module，Transistor output, 32*24VDC, 0.5A CTH2 222-1BL32
Digital output module，8*Relay output, 2A CTH2 222-1HH32 Digital output module，16*Relay output, 2A CTH2 222-1HF32
- Technical Spec
-
Performance Parameters
Features
8DO，24VDC
16DO，24VDC
32DO，24VDC
Order No.

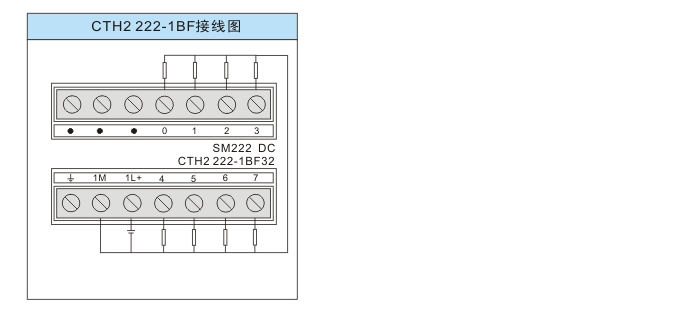

CTH2 222-1BF32
CTH2 222-1BH32
CTH2 222-1BL32
Physical Features
Dimension（W×H×D）
46 × 96 × 62mm
71.3 × 96 × 62mm
138 × 96 × 62mm
Power loss
Power loss
2W
3W
3W
+5VDC Current consumption
57mA
79mA
174mA
Output Features
Output
8DO
16DO
32DO
Output type
Solid MOSFET
Voltage output
Rated voltage
24VDC
voltage range
20.4～28.8VDC
Logical 1 Signal
Min.20VDC
Logical 0 Signal
Max.0.1VDC（10KΩ）
Current output
Logical 1 Signal
0.5A
0.5A
0.5A
Group output
1
2
4
Output per group
8
8
8
Simultaneous output
8
16
32
Max current per group
4A
4A
4A
Lamp load
5W
5W
5W
Contact resistance
0.3Ω
0.3Ω
0.3Ω
Max leakage current
10μA
10μA
10μA
Surge current（max）
8A，100ms
8A，100ms
8A，100ms
Isolated points per group
8
8
8
Output delay(RL = 50Ω)
Off－on
Max.50μs
On－off
Max. 200μs
Maximum cable length
Unshielded
150m
Shielded
500m
Features
8DO Relay
16DO Relay
Order No.

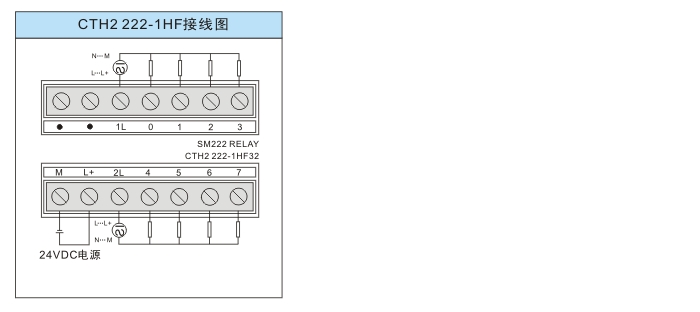

CTH2 222-1HF32

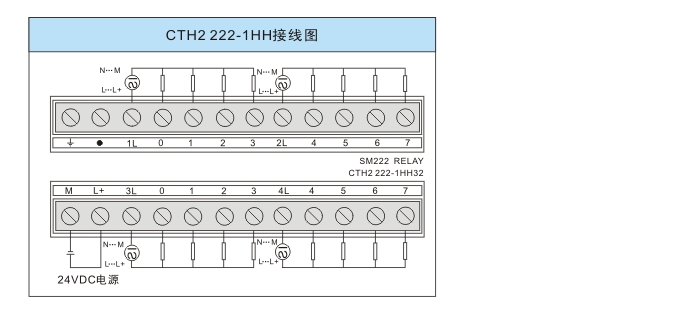

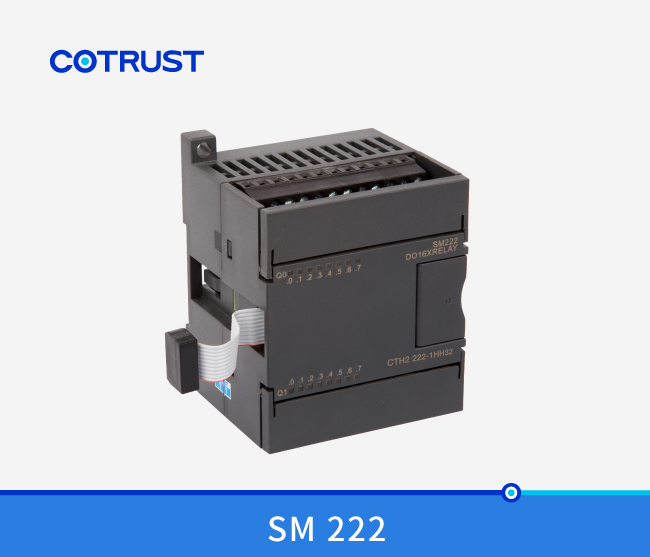

CTH2 222-1HH32
Physical Features
Dimension（W×H×D）
46 × 96 × 62mm
71.3 × 96 × 62mm
Power loss
Power loss
2W
3W
Backplane bus（+5VDC）
68mA
115mA
Output Features
Output number
8
16
Output type
Relay－dry contact
Voltage output
DC：5～30V，AC：5～250V
Current output
Logical 1 Signal
2A
2A
Group output
2
4
Output per group
4
4
Output number when”on”
8
16
Max. Current per group
8A
8A
Lamp load
5W
5W
Contact resistance
0.2Ω
0.2Ω
Surge current（max）
7A，when contact off
7A，when contact off
Short-circuit protection
External provision
External provision
Isolation
isolated per group
4
Between coil and logic power
--
Between coil and contacts
1500VAC，1 minute
Resistance（between coil and contacts）
Min. 100MΩ
Relay features
Switch delay
15ms
Switch frequency（max）
1Hz
Machine switching times
30,000,000
Contact service time（rated load）
300,000
Maximum cable length
Unshielded
150m
Shielded
500m
- Installation
-
Size Diagram
