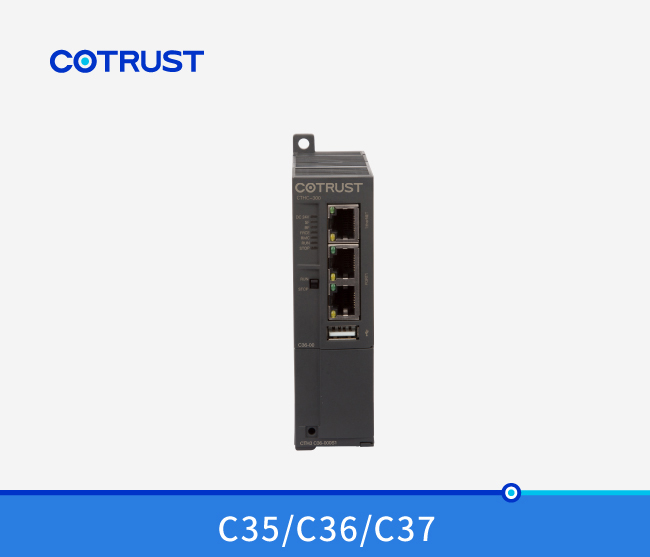

C37-02/C37-01/C36-01/C35-01 CPU

C37-01:32MB PM, 64KB data stored when power down, 55M expansion bus;1 Free port, 1 EtherCAT port, 1 EtherNET port, 1 CAN port,1 USB port.Support SoftMotion,CNC.

Order No.:CTH3 C37-002S2/CTH3 C37-001S2/CTH3 C36-001S2/CTH3 C35-001S2/CTH3 C37-000S1/CTH3 C36-000S1/CTH3 C35-000S1

Specification:C36-01::32MB PM, 64KB data stored when power down, 55M expansion bus;1 Free port, 1 EtherCAT port, 1 EtherNET port, 1 CAN port,1 USB port.Support SoftMotion.C35-01::32MB PM, 64KB data stored when power down, 55M expansion bus;1 Free port, 1 EtherCAT port, 1 EtherNET port, 1 CAN port,1 USB port.

Product Description

Order Data

Product Name

Specifications

Order No.

C35-01

CTH300-C motion control CPU, 32MB PM, 64KB data stored when power down, 55M expansion bus;1 Free port, 1 EtherCAT port, 1 EtherNET port, 1 CAN port,1 USB port.(Recommend)

CTH3 C35-001S2

C36-01

CTH300-C motion control CPU, 32MB PM, 64KB data stored when power down, 55M expansion bus;1 Free port, 1 EtherCAT port, 1 EtherNET port, 1 CAN port,1 USB port.Support SoftMotion.(Recommend

CTH3 C36-001S2

C37-01

CTH300-C motion control CPU, 32MB PM, 64KB data stored when power down, 55M expansion bus;1 Free port, 1 EtherCAT port, 1 EtherNET port, 1 CAN port,1 USB port.Support SoftMotion,CNC.(Recommend

CTH3 C37-001S2

C37-02CTH300-C motion control CPU, 32MB PM, 64KB data stored when power down, 55M expansion bus;1 RS485 port(Modbus), 1 EtherCAT port, 1 EtherNET port, 1 CAN port,1 USB port.Support single axis motion control, interpolation, electronic gear and electronic CAM and other SoftMotion command set functions and CNC functions, support CODESYS programming platform SP11 versionCTH3 C37-002S2



Technical Spec

Performance Parameters

Model No.

C35-00

C36-00

C37-00

C35-01

C36-01

C37-01

C37-02

Physical Features

Dimension(W×H×D)

34×115×101.6 mm

Power consumption

19.2W

Memory

User program memory

32MB

32MB

32MB

32MB

32MB

32MB

32MB

Power down to maintain space


32KB

64KB

120KB

Power supply features

Rated input voltage

24V DC

Input voltage range

20.4V~28.8V DC

Input current

0.8A

Reverse polarity protection

Yes

Bus power supply voltage

+5V DC

Bus supply current

1.6A

Isolation

Isolation between external power and system power

LED indicator features

24V power indicator (green)

On: 24VDC power supply is normal, off: no 24VDC power supply

SF indicator (red)


On: system failure, off: no error

BF indicator (red)

On: bus failure, off: no error

Run indicator (green)

On: system runs, off: the system stops

STOP indicator (orange)

On: system stops; off: system runs

RJ45 network port indicator

Green

Blink: connected, off: unconnected

Yellow

On: 100Mbps, off: 10Mbps

CAN port indicator

Green

--

Data receiving indicator

Yellow

--

Data transmission indicator

Real time clock

Power down of maintain time

Power down retention time approx. 112 hours (typical value)

Precision

Monthly deviation <60 seconds

Read/set the real-time clock

Read/set via the SETRTC directive

Protection function

Power protection

Power supply end provides reverse connection protection function and surge absorption function

Interface protection

Communication port lightning protection

Extend I/O capabilities

Supports INT-00 rack count of 1 CPU

4

Maximum number of modules supported per rack

Support up to 8 modules, power, CPU, relay module is not including

Supports ETC-00 rack count of 1 CPU

Supports up to 128

Number of modules supported per ECT-00

Supports up to 8 modules

Isolation

Power supply isolation

Isolation between external power and system power

Communication isolation

Ethernet, RS485 isolation, CAN isolation


Model No.

C35-00

C36-00

C37-00

C35-01

C36-01

C37-01

C37-02


Supports SP4 version of Codesys platform

Supports Codesys platform SP11 version

EtherNET port

Communication port

1*EtherNET port

Baud rate

10/100Mbps adaptive

Protocol type

Codesys custom protocol, based on UDP and TCP, support Ethernet programming and Ethernet communication between CPU, support Socket free communication.

Maximum cable length per segment

100m directly connected

Maximum number of connections to a site

UDP supports up to 16 connections and TCP supports up to 32 connections.

 DHCP featureSupport
 Remote monitoring/programming Support
IsolationCommunication port isolation

EtherCAT port

Communication port

1*EtherCAT port

Maximum number of site



Each master supports up to 128 EtherCAT slave stations per master

Protocol type

EtherCAT

Support functions

Supports distributed clock configuration

Support startup parameter configuration

Support for configuring PDO parameters and mappings

Support for configuring bus cycle cycle, configuring startup check vendor ID and product ID

Maximum cable length per segment

100m

Baud rate

10/100Mbps adaptive

Isolation

Communication port isolation

RS485 port

Communication port

1*RS485 port

Maximum number of site

Each network with a maximum of 1 master station and 31 slave stations

Protocol type

Modbus master/slave protocol

Modbus Baud rate

1200\4800\9600\19200\38400\57600\115200bps

Isolation

Communication port isolation

CANopen port

Communication port

--

1*CAN communication master station port

Maximum number of slave sites

Up to 32 slave stations can be connected behind one master station

Protocol type

CANopen DS301 standard protocol

Support functions

Support for automatically starting CANOpen Manager

Support optional slave polling

Support to start slave stations

Support to start slave stations

Support synchronous production

Support synchronous consumption

Support heartbeat generation

Support activation time creation

Transmission rate(kbit/s)

1000

800

500

250

125

50

20

Maximum length(m)

25

50

100

250

500

1000

2500

Isolation

Communication port isolation



Installation

Power interface definition

4pin terminals spaced at 3.81mm apart

Symbol

Signal definition


L+

+24V power

M

+24V power ground



Ground

--

--



USB interface definition

USB port

No.

Signal

Signal definition


1

V_BUS

+5V power

2

Data-

Data-

3

Data+

Data+

4

GND

Ground


EtherNET interface definition

RJ45 port

No.

Signal

Signal definition


1

TX+

Positive end of data transmission

2

TX-

Negative end of data transmission

3

RX+

Positive end of data transmission

4

TERM

--

5

TERM

--

6

RX-

Negative end of data transmission

7

TERM

--

8

TERM

--

Shell

PE

Shell ground

Green indicator

As an indication of EtherNET connection status

Yellow indicator

As an indication of EtherNET connection status


CAN interface definition

RJ45 port

No.

Signal

Signal definition


1

CAN_H

Positive end of data transmission

2

CAN_L

Negative end of data transmission

3

--

--

4

--

--

5

--

--

6

--

--

7

CAN_GND

CAN Gound

8

--

--

Shell

PE

Shell ground
Green indicator

As an indication of CAN connection status

Yellow indicator

As an indication of CAN connection status


RS485 interface definition

Port0,use 2pcs of 3pin terminals spaced at 3.81mm apart

6pin terminals

Signal

Signal definition


A0

PORT0 RS485 signal A

B0

PORT0 RS485 signal B

SG

PORT0 RS485 signal ground

A0

PORT0 RS485 signal A

B0

PORT0 RS485 signal B

SG

PORT0 RS485 signal ground


Dial switch definition

Dial switch

Symbol

Dial direction

Signal definition


RUN

Up

System operation

STOP

Down

System halt


Swivel 5 times in 3 seconds

Reset the IP configuration (once from run-> STOP and once from stop-> RUN)


DIP

No.

Symbol

Signal definition


1

Term-PORT0

Terminal resistance switch 1(PORT0)

ON:with terminal resistance

OFF:without terminal resistance


2

NC

Reserve

3

NC

Reserve



Return
