- Product Description
-
Applications
Machine tool、Cable machinery、Petrochemical industry 、Textile industry、Food packaging、Eluting equipment、Centrifuge etc
CTF220 Series Model and Technical Data

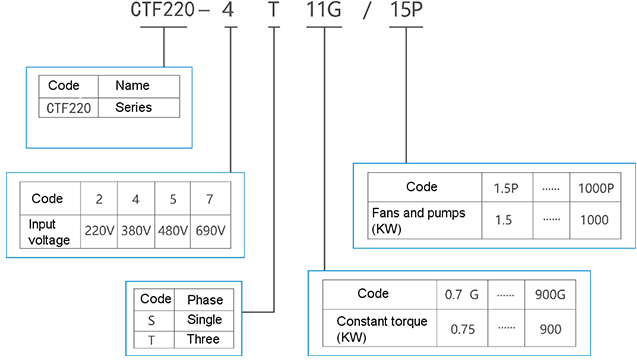

Type Rated Capacity Rated Input Rated Output Current(A) Adapter (KVA) Current (A) Motor(KW) Single-phase power supply 200～240V 50/60Hz CTF220-2T0.7 1.5 8.2 4 0.75 CTF220-2T1.5 3 14 7 1.5 CTF220-2T2.2 4 23 9.6 2.2 Three-phase power supply 380～480V 50/60Hz CTF220-4T0.7G/1.5P 1.5/3 3.4/5 2.1/3.8 0.75/1.5 CTF220-4T1.5G/2.2P 3/4 5/5.8 3.8/5.1 1.5/2.2 CTF220-4T2.2G/3.0P 4/4.9 5.8/8.0 5.1/6.8 2.2/3.0 CTF220-4T3.0G/4.0P 4.9/5.9 8.0/10.5 6.8/9.0 3.0/4.0 CTF220-4T4.0G/5.5P 5.9/8.9 10.5/14.6 9/13 4.0/5.5 CTF220-4T5.5G/7.5P 8.9/11 14.6/20.5 13/17 5.5/7.5 CTF220-4T7.5G/11P 11/17 20.5/26 17/25 7.5/11 CTF220-4T11G/15P 17/21 26/35 25/32 11/15 CTF220-4T15G/18.5P 21/24 35/38.5 32/37 15/18.5 CTF220-4T18.5G/22P 24/30 38.5/46.5 37/45 18.5/22 CTF220-4T22G/30P 30/40 46.5/62 45/60 22/30 CTF220-4T30G/37P 40/57 62/76 60/75 30/37 CTF220-4T37G/45P 57/69 76/92 75/91 37/45 CTF220-4T45G/55P 69/85 92/113 91/112 45/55 CTF220-4T55G/75P 85/114 113/157 112/150 55/75 CTF220-4T75G/90P 114/134 157/180 150/176 75/90 CTF220-4T90G/110P 134/160 180/214 176/210 90/110 CTF220-4T110G/132P 160/192 214/256 210/253 110/132 CTF220 Series Naming Rules
- Technical Spec
-
CTF220 series Specifications
Item Specifications Basic functions Maximum frequency Vector control: 300.00Hz V/F control: 3200Hz Carrier frequency 0.5kHz-16kHz, The carrier frequency can be adjusted automatically based on the load features. Input frequency resolution Digital setting: 0.01Hz Analog setting: maximum frequency × 0.025% Control mode Open-loop vector control (SVC) Closed-loop vector control (FVC)30KW and above V/F Control Start-up torque G type: 0.5Hz/150% (SVC), 0Hz/180% (FVC) P type: 0.5Hz/100%. Speed range 1：100 （SVC） 1：1000（FVC） Steady speed accuracy ±0.5%（SVC） ±0.02%（FVC） Torque control accuracy ±5%（FVC） Overload capacity G type: 150% rated current 60s; 180% rated current 3S P type: 120% rated current 60s; 150% rated current 3S Automatic torque lifting Manual torque lifting 0.1%-30.0%. Three ways of V/F curve Straight-line type; Multi-point type; Ramp mode Straight-line ramp or S-curve ramp, Four groups of acceleration /deceleration time with the range of 0.0s-6500.0s DC braking 0.00Hz - maximum output frequency, Braking time: 0.0s - 36.0s Braking action current value: 0.0% - 100.0%. JOG control JOG frequency range: 0.00Hz-50.00Hz, JOG acceleration / deceleration time: 0.0s-6500.0s On board multiple preset speeds It implements up to 16 speeds via the simple PLC function or combination of DI terminal states. Built-in PID It realizes process-controlled closed-loop control system easily. Automatic voltage adjustment (AVR) It can keep constant output voltage automatically when the main voltage changes. Torque limitation and control It cam limit the torque automatically and prevent frequent over current tripping during the running process. Individualized functions Safety self-inspection of power-on peripheral equipment It can realize the safety detection of peripheral equipment such as grounding, short circuit and so on. Over-voltage and over-loss speed control Automatic limit of current and voltage during operation to prevent frequent over-current and over-voltage tripping Fast current Limit Minimizing overcurrent fault and protecting frequency converter in normal operation Common DC bus function It can realize common DC bus functions of multiple frequency converters. QUICK key User-defined shortcut menu MF.K key Programmable key: command channel switching/forward and reverse running/JOG running function selection Textile swing frequency control Given length control function Timing control Timing control function: setting time range 0h-65535h Running channel Running command sources Three channels: operation panel, control terminal and serial communication port .They can be switched over between these sources in various ways. Frequency sources There are total 10 of frequency sources, such as digital setting, analog voltage setting, analog current setting,pulse setting and serial communication port setting. They can be switched over these sources in various ways. Auxiliary frequency command 10 kinds of auxiliary frequency instructions. It can realize auxiliary frequency fine adjustment and frequency synthesis flexibly. Input terminal Seven digital input terminals (6 digital inputs within 22KW), of which X5 can be used for high-speed pulse input.
Compatible with active PNP or NPN input mode.Two analog input terminals can be used for voltage or current input.Output terminal ①1 high-speed pulse output terminal DO (optional open collector type), 0 KHz-100 KHz square wave signal output
It can realize the output of set frequency, output frequency and other physical quantities；
②3 digital output terminals（>30KW）;
③2 relay output terminals；
④2 analog output terminals, 0/4mA-20mA or 0V-10V, It can realize the output of set frequency, output
frequency and other physical quantities.Display and keyboard LED display Display monitoring parameters, output frequency, set frequency, bus voltage, etc. Protection Function Short circuit detection , input and output phase loss protection, overcurrent protection, overvoltage protection, undervoltage protection , overheat protection and overload protection Optional parts Brake assembly Ambient Installation location Indoor ,free from direct sunlight, dust-free, corrosive gases, combustible gases, oil smoke, vapour, drip or salt, etc. Altitude <1000m Ambient temperature -10°C～+40°C (ambient temperature is 40°C～50°C , please derate to use) Humidity Less than 95 k% RH, no water droplet condensation Vibration less than 5.9m/s 2 (0.6g) Storage temperature -20℃～+60℃ IP level IP20 Pollution grade PD2 Power distribution system TN，TT
- Installation
-
1.1 CTF220 Product Profile

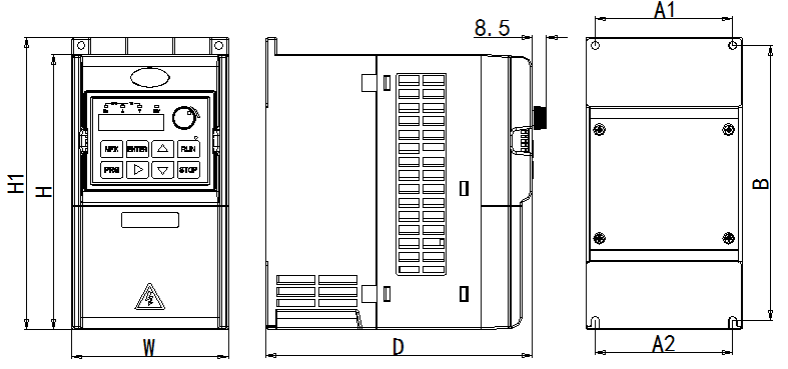

A: 22kW Outline Size and Installation Size

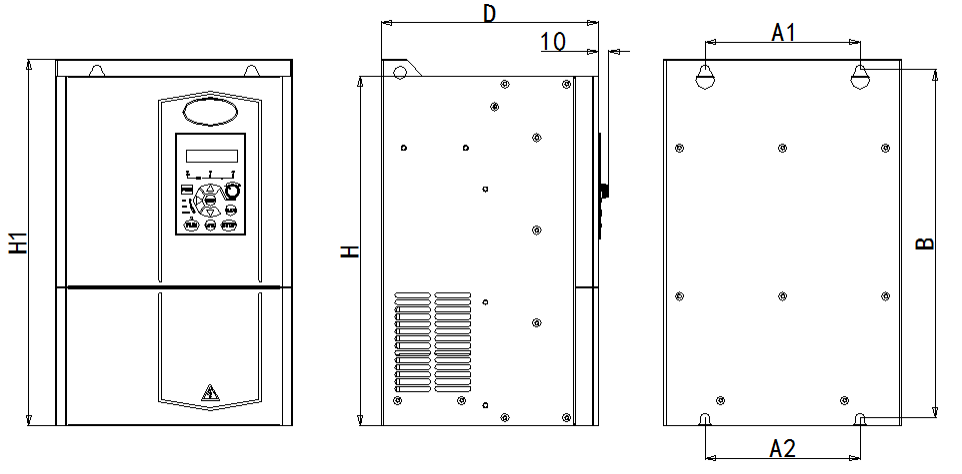

B: 30kW～110kW Outline Size and Installation Size
1.2 Profile and Installation Hole Size
Shell code Model Installation Hole Position (mm) Dimension (mm) Installation Diameter (mm) Weight(kg) A1/A2 B H H1 W D Z2 CTF220-2T0.7 81/81 162 162 172 92 152 ∅4.5 1.4 CTF220-2T1.5 CTF220-2T2.2 CTF220-4T0.7G/1.5P CTF220-4T1.5G/2.2P CTF220-4T2.2G/3.0P CTF220-4T3.0G/4.0P CTF220-4T4.0G/5.5P Z3 CTF220-4T5.5G/7.5P 98/98 208 207 219 109 172.5 ∅5.5 2.1 CTF220-4T7.5G/11P Z4 CTF220-4T11G/15P 119/119 250 250 261 130 182 ∅5.5 3.4 CTF220-4T15G/18.5P Z5N CTF220-4T18.5G/22P 167/177 282 280 293 190 199 ∅5.5 5.7 CTF220-4T22G/30P 5.9 Z6N CTF220-4T30G/37P 210/200 410 390 426 250 210 ∅9 13.5 CTF220-4T37G/45P Z7N CTF220-4T45G/55P 266/266 473 450 492 300 236 ∅9 18.35 CTF220-4T55G/75P 18.85 EN CTF220-4T75G/90P 230/230 536 500 555 320 230 ∅10 24.8 FN CTF220-4T90G/110P 320/320 611 568 634 410 240 ∅12 35.5 CTF220-4T110G/132P 36.2 1.3 External Keyboard Size
Only Z2, Z3, Z4 shell standard with CTF-KB 220 keyboard, other shells are standard with CTF-KB 221 native keyboard.

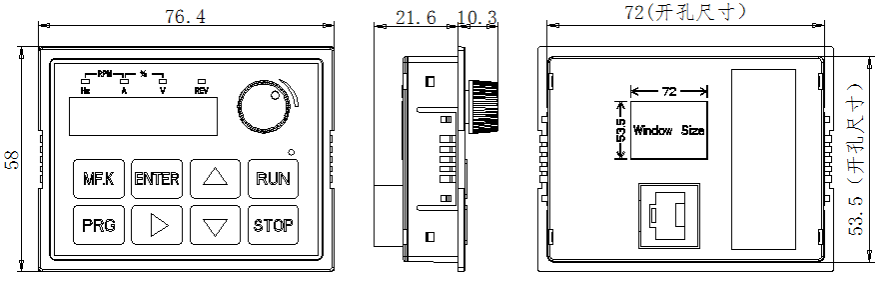

1、CTF-KB220 External Keyboard Size（Opening Size 72*53.5mm）

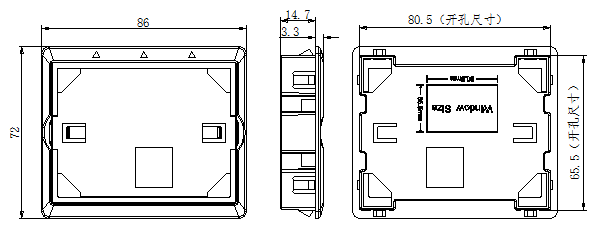

2、CTF-KB220A Keyboard shell Size（Opening Size 80.5*65.5mm）

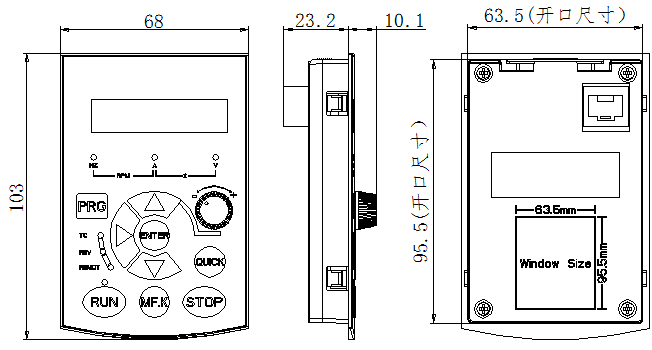

3、CTF-KB221 External Keyboard Size（Opening Size63.5*95.5mm）

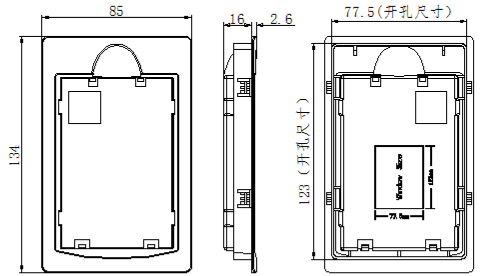

4、CTF-KB220A Keyboard shell Size（Opening Size 77.5*123mm）

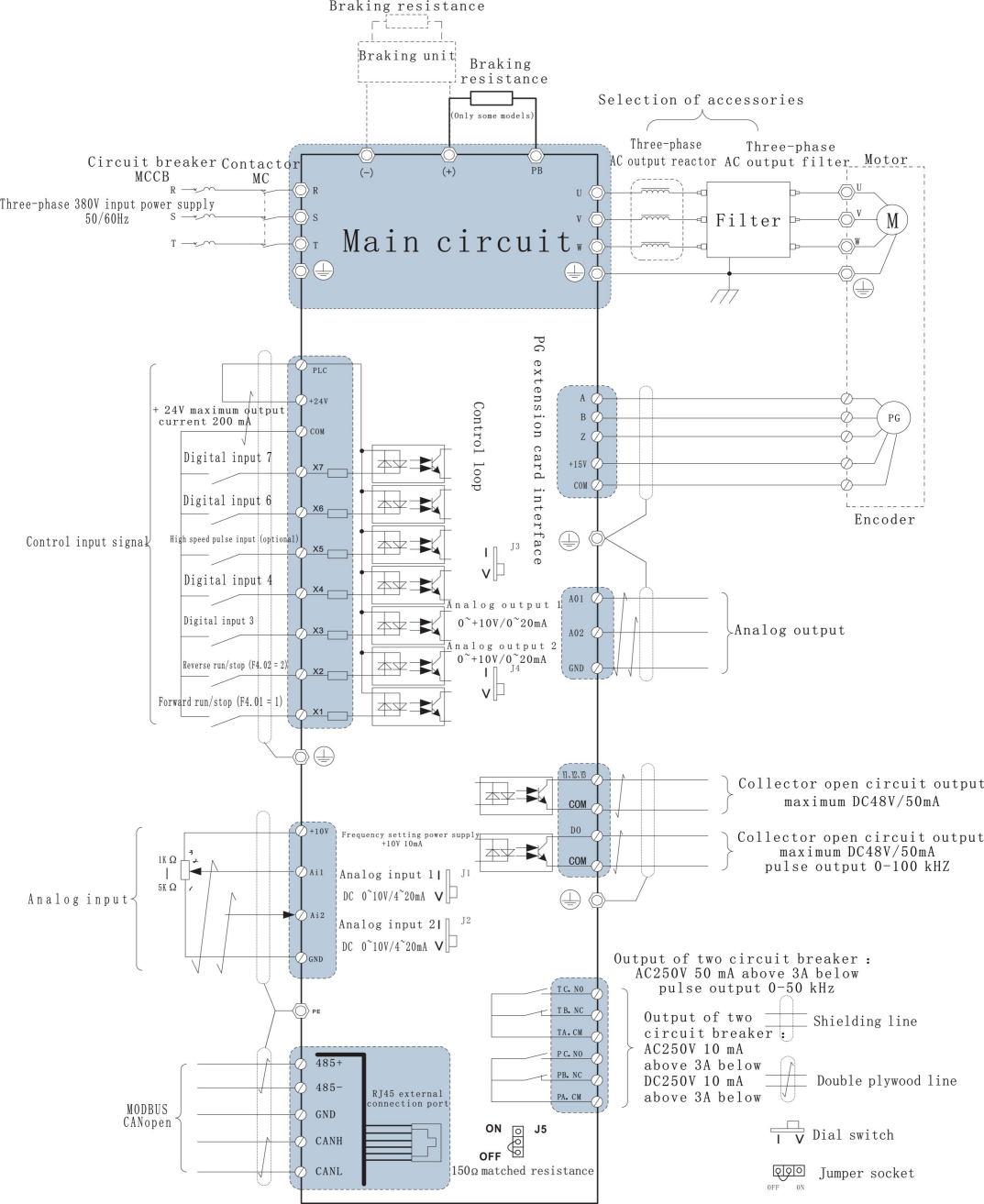

2. Typical Wiring Diagram
