- Product Description
-
Order Data
Product Name
Specification
Order No.

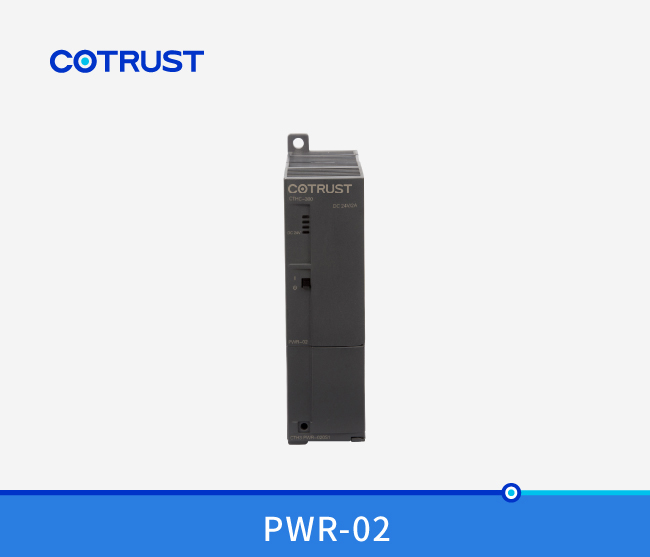

PWR-02 power module
Input：85～264V AC，output：24V DC/2A
CTH3 PWR-020S1
- Technical Spec
-
Performance Parameters
Physical Characteristics
Dimension（W×H×D)
34×115×101.6 mm
Power Consumption
10W
LED lights Diagnostics
24V Power LEDs,(green)
On：24VDC normal power；Off：No 24VDC power supply
Switching Characteristics
Switch
Control 24V DC power output
ON：24VDC normal power；OFF：No 24VDC power supply
Input voltage Characteristics
Voltage range
85 ~ 264VAC, Wide voltage input
Rated frequency
Frequency Range
50Hz/60Hz
47Hz～63Hz
Efficiency
75%
AC current
0.9A/110V、0.5A/220V
Surge current (25 ℃ max)
≤20A/110V、≤35A/220V
Leakage current
≤5mA/220VAC
Output voltage characteristics
DC voltage / rated current
24VDC/2A
Rated Power
48W
Ripple and noise (maximum)
150mVp-p
Voltage output range
±5%
Start / Rise / hold time
≤2.5s/≤50ms/≥20ms
Isolation (power input and output)
110V / 220V isolation between the AC and 24V DC
Protection
Overload protection
105% to 130% of the rated output power, cut off the output, troubleshooting, automatic recovery
Overvoltage Protection
115% ~ 135% Ue; protection: Hiccup mode, troubleshooting, automatic recovery
Surge Protection
Power supply terminal supports surge absorption function
Overcurrent Protection
Power output provides overcurrent protection
Safety electromagnetic Compatibility
Withstanding Voltage
Input - Output: 1.5KVDC, enter -PE: 1.5KVDC, output -PE: 500VDC
Isolation resistance
Input - Output, Input -PE, output -PE: 100MΩ / 500VDC
Standard
Safety reference UL60950 and UL1950, EMC reference EN55022
- Installation
-
Wiring Diagram
1. Interface Schematic
2. Interface Definition
（1） 220V AC input power interface definition of power-02
3 removable terminal
signal
signal definition
L
live wire N
neutral wire ground
（2） 24V DC power output interface definition of PWR-02
4 removable terminal
signal
signal definition
L+
+24V power
M
+24V power G
L+
+24Vpower
M
+24V power G
（3）DIP switch definition of PWR-02
Two-state switch
bit NO. Dip direction
signal definition
ON
up
24V DC output
OFF
down
no 24V DC output
