C36-02

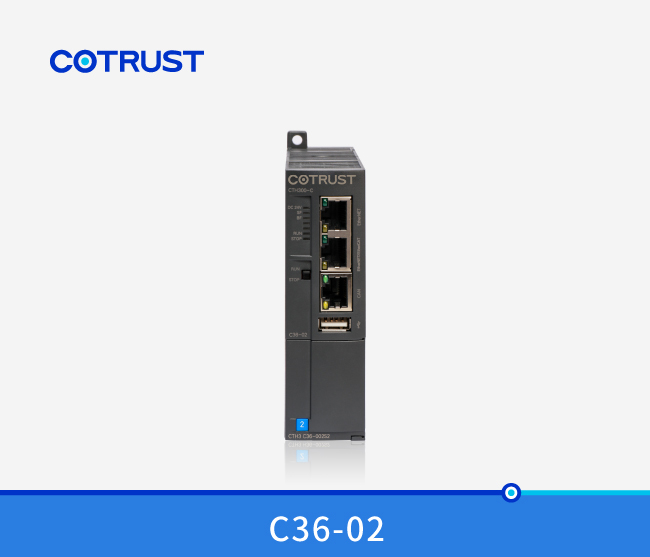

CTH300 Series CPU (Dual-Port and Dual-Serial Port C36-02)

Order No.:CTH3 C36-002S2

Specification:Standard motion control, 32MB program data space, 64KB powerdown hold data, 55M extension bus, 24VDC power supply, 2 RS485 communication ports (MODBUS free port protocol), 2 EtherNET interfaces (one of which is shared with EtherCAT), 1 EtherCAT interface, 2 Ethernet interfaces, 1 EtherCAT interface 1 CAN port, 1 USB port.

Product Description



Product Name

Specifications

Order No.

C36-02

Standard motion control, 32MB program data space, 64KB powerdown hold data, 55M extension bus, 24VDC power supply, 2 RS485 communication ports (MODBUS free port protocol), 2 EtherNET interfaces (one of which is shared with EtherCAT), 1 EtherCAT interface, 2 Ethernet interfaces, 1 EtherCAT interface 1 CAN port, 1 USB port, support electronic CAM, electronic gear and other SoftMotion command set functions, support Codesys programming platform SP11 version.

CTH3 C36-002S2

Note: The function of EtherCAT /EtherNET communication interface is switched by DIP switch. When the DIP switch state is OFF, EtherCAT communication is realized, and when the DIP switch state is ON, the EtherNET switch function is realized.


Technical Spec

Performance Parameters

Physical Features
Dimension(W×H×D)34×115×100 mm
Power dissipation19.2W
Power Supply Features
Rated input voltage24V DC
Input voltage rang20.4V~28.8V DC
Input current   0.8A
Polarity reverse connection protectionYes
Bus power supply voltage+5V DC
Bus power supply current 1.6A
LED Indicator Features
24V power indicator (green)On: 24VDC power supply is normal; Off: No 24VDC power supply
SF indicator(red)On: system failure; Off: no fault
BF indicator(red)On: bus fault; Off: no fault
RUN indicator(green)

On:the system is running; Off: the system stops

STOP indicator(yellow)On: the system stops; OFF = System running
Link1 indicator(green)

On: connection; Off: no connection

SPEED1 indicator(yellow)On:100Mbps;Off:10Mbps
Link2 indicator(green)--
SPEED2 indicator(yellow)--
I0.0~I1.1(green)--
Instruction performance
Bit instruction execution speed0.015µs/step
Floating-point instruction execution speed1.0µs/step
Memory
User program memory32MB
Power down retention memory64KB
Integrated communication function
Bus interfaceprovides extension module interface
USB port provides USB main device interface
EtherNET port2*EtherNET port
RS485 port2*RS485 port
EtherCAT port1*EtherCAT port
CAN port1*CAN port
RS485 port
Number of communication interfaces and protocols2ports,PORT0、PORT1
Free port baud rateBaud rate 1.2Kbps~115.2Kbps,built-in Modbus master/slave function
PPI/MPI baud rate9.6Kbps,19.2Kbps,187.5Kbps
Maximum cable length per segment Using isolation repeater: 1000m(115.2Kbps)
1200m(38.4Kbps)
No isolation repeater used: 50M
Maximum number of stations 32 for each segment and 126 for each network
IsolationCommunication port isolation
CANopen communication port
Communication port1*CAN port
Maximum number of slave stations 1 master station can be followed by a maximum of 32 slave stations
Protocol typeCANopen DS301 standard protocol
Support function Supports automatic starting of CANopen Manager
Supports optional slave polling
Support to start slave stations
Support the NMT
Support synchronous production
Support synchronous consumption
Support heartbeat generation
Support activation time creation
Transmission rate(kbit/s)100010008005002501255020
Maximum length (m)25255010025050010002500
IsolationCommunication port isolation
EtherNET port
Communication port2*EtherNET port(One of the ports shares a network port with EtherCAT.)
Baud rate10/100Mbps adaptive
Protocol typeUDP_PPI protocol, support Ethernet programming and Ethernet communication between CPU
Maximum length of each cable100m connection directly
Maximum number of  connections per siteUDP_PPI supports a maximum of 16 connections.TCP supports a maximum of 32 connections
IsolationCommunication port isolation



EtherCAT port
Communication port1*EtherCAT port
Baud rate100Mbps adaptive
Protocol typeEtherCAT communication protocol
Maximum length of each cable100m  connection directly
Maximum number of  connections per siteEach master supports up to 128 EtherCAT slave stations
Support functionSupport for distributed clock configuration, redundancy settings
Support startup parameter configuration
Support for configuring PDO parameters and mappings
Support for configuring bus cycle cycle, configuring startup check vendor ID and product ID
Programming software
Programming software package  CODESYS programming platform SP11 version.
Programming language IEC61131-3 programming language: CFC/FBD/LD/IL/ST/SFC
Protection function
Power supply protectionPower supply provides reverse connection protection function and surge absorption function
Interface protectionCommunication port lightning protection
Local I/O expand capabilities
Maximum number of racks4
Maximum number of modules

Main rack extensions: 11 (power module, CPU, relay module, 8 signal modules)

slave rack extensions: 10 (power module, relay module, 8 signal modules)

Remote I/O expansion capabilities
CAN extends the maximum number of master stations 1
Maximum number of CAN slave stationsEach master station CAN connect up to 32 CAN slave stations (277C)
Maximum number of EtherCAT extended slave stationConnect up to 128 EtherCAT slave modules, each EtherCAT slave module has a maximum of 8 signal modules
Support motion control function
Motion control functionSoftmotion.
Real time clock
Power-down retention time Power-down retention time is about 112 hours (typical value)
AccuracyLess than 60 seconds per month
Digital input features
Integrated IO--
Input type --
Rated voltage--
Input voltage range --
Surge voltage--
Logic 1 signal (min.)--
Logic 0 signal (Max) --
Connect 2-wire proximity switch sensor (BERO)--
Input filtering--
Isolation (field and logic)--
Isolation group--
Simultaneous connection input--
Maximum cable length--
Shielded--
Unshielded--
Pulse capture input--
High speed counter
Total
--
Single phase
--
Two phase--



Installation


Power interface definition

4pin terminals spaced at 3.81mm apart

Symbol

Signal definition


L+

+24V power positive

M

+24V power negative



+24V power Ground

--

--


USB interface definition

USB port

No.

Signal

Signal definition


1

V_BUS

+5V power

2

Data-

Data-

3

Data+

Data+

4

GND

Ground


EtherNET/EtherCAT interface definition

RJ45 port

No.

Signal

Signal definition


1

TX+

Positive end of data transmission

2

TX-

Negative end of data transmission

3

RX+

Positive end of data transmission

4

TERM

--

5

TERM

--

6

RX-

Negative end of data transmission

7

TERM

--

8

TERM

--

Shell

PE

Shell ground


RS485/CAN interface definition

RJ45 port

No.

Signal

Signal definition


1

CAN_H

Positive end of data transmission

2

CAN_H

Negative end of data transmission

3

-

--

4

A0

RS485 signal A

5

B0

RS485 signal B

6

-

--

7

CAN_GND

CAN_GND signal Ground

8

-

--

Shell

PE

Shell ground


Dial switch definition

Dial switch

Symbol

Dial direction

Signal definition


RUN

Up

System operation

STOP

Down

System halt


Swivel 8 times in 3 seconds

Reset the IP configuration (once from run-> STOP and once from stop-> RUN)
