- Product Description
-
Order Data
Model No.
Series
Specification
Order No.
TP07I
HMI
7.0 inch，800×480 resolution，LCD-TFT true colors，256K ，1*RS485 port,1*USB port,1*Ethernet port
CTS6 T07I-CH030
- Technical Spec
-
Technical Specification
SpecificationTP07IDisplayType7.0 inchResolution（W×H，Pixel）800 ×480Colors256K colorsLuminance（CD/㎡）350Visual Dimension((up/down/left/right)50/60/75/75Background lightLEDAverage lifetime of background light（25℃）20000 hours（Typical）Weight1.5KGInstallation AngleVerticalInterfaceRS485/USB/Ethernet（SD card、CANreserved）VariablesNumber of variables in project file 2048AlarmsNumber of alarm classes 32Number of discrete alarms2000Number of analog alarms200Character length of an alarm50ScreensNumber of screens100Number of fields per screen200Number of variables per screen100Number of complicated objects per screen5RecipesNumber of recipes100Number of elements per recipe500Number of data records per recipe200LogsNumber of logs20Number of entries per log file5，000，000TrendsNumber of trends300Text list and graphic listNumber of text lists400Number of graphic lists500Total number of lists500Number of entries per text or graphic list256Number of graphic objects1000User administrationUser groups50Authorization32Number of users50Size of project file30MBSystem keys for configuration×Number of connections32Number of runtime languages√FontSong typefaceOnline help×schedules√Additional functions×SoftwareScreen aimingAudio feedback setting of touch screenOn-off setting of LED background lightRuntime clockSystem version informationGeneral Specification
Touch panel
Type
4-wire resistive
Transparency
Over 80%
Response speed
Within 10ms
Life time
More than 1 million times
Audio output
Touch panel operation
Audio feedback
Communication
RS485
2，communicating with PLC,PPI/MPI、MODBUS、Omron Hostlink/Multilink、Mitsubishi Protocol
USB Master
2, connected with U disk
USB Slaver
1, connected with PC for download program
Power supply
Working voltage
9VDC~28VDC
Rated Voltage
24VDC
Rated current
0.3A
Physical size
Front panel（l*w mm）
214×156
Perforate size（l*w mm）
192×138
Environmental conditions
Working temperature
-10℃~60℃
Transport/ storage temperature
-20℃~70℃
Humidity
10%~90%，non-condensing
Sinusoidal vibration
10 to 50Hz(3 axis direction，1G)
Package drop
1M of height , free drop
- Installation
-

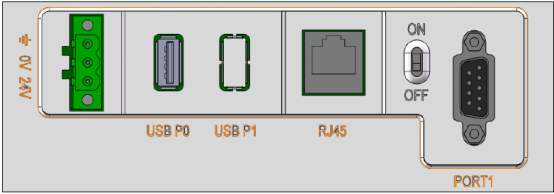

TP07I、TP10I Ethernet HMI interface diagram as below
(1)USB P0: main device interface, connect USB slave devices, such as WIFI module, U disk, USB printer, mouse, etc.
(2)USB P1: main device interface, connect USB slave devices, such as WIFI module, U disk, USB printer, mouse, etc.
(3)EtherNET communication port: support project file download, EtherNET communication, etc.
(4)SW dial-code switch (PORT1) : used to choose whether to use the built-in RS485 terminal resistance to match.
(5) RS485 communication port (PORT1) : support a variety of communication protocols (MODBUS RTU, Omron Hostlink/Multilink, Omron finslink, Mitsubishi Protocol 4, Mitsubishi FX, Panasonic Mewtocol, Delta DVP, Fatek FBs, LS mast-k Cnet).
(6)Power interface: 24VDC power interface.
Note: Download program can be carried out through U disk, Ethernet port or WIFI connection
RS485 communication port definition
RS485 port
PIN
PORT1 signal
1
Ground
2
-
3
RS485 D1+
4
-
5
0V DC
6
+5V DC
7
24V DC
8
RS485 D1-
9
-
