- Product Description
-
Order Data
Product Name
Specification
Order No.

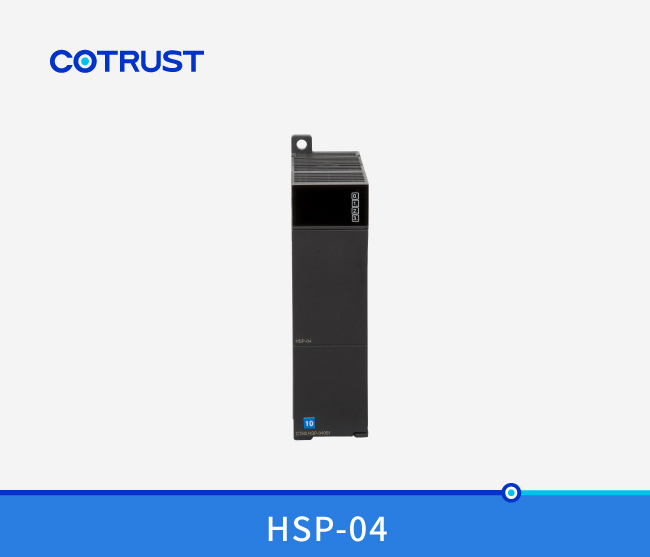

HSP-04 Pulse output module
4*4Mhz,500KHZ single-end signal output.
CTH3 HSP-040S1
- Technical Spec
-
Physical Characteristics
Dimension(W×H×D)
34×115×100 mm
Power Consumption
Related voltage
24V DC
Input voltage range 20.4~28.8VDC Bus voltage supply
+5V DC
Bus current supply
100mA
LED lights Diagnostics
Signal Indicator
On:signal input,Off:without signal input Number of input channels
4
Differential input Signal voltage:5VDC
Maximum input frequency:4KHzSingle-ended input Signal voltage:24VDC
Maximum input frequency:500KHz
Allowable range of signal duty cycle:50%
- Installation
-
Size Diagram
Wiring Diagram
