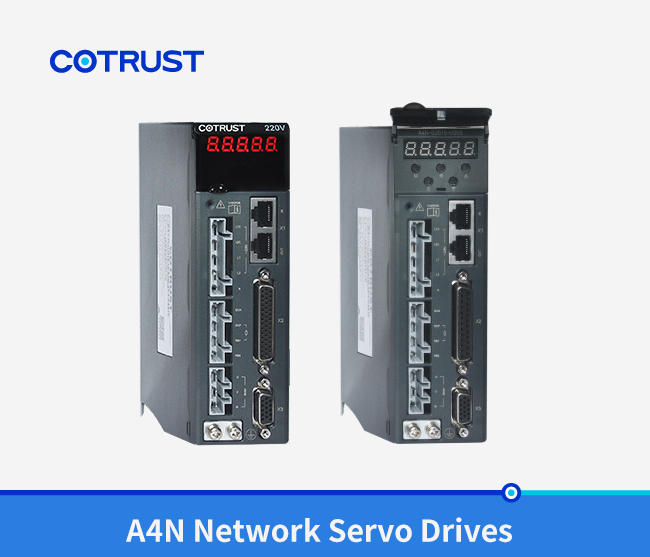

A4N Network Servo Drives

A4N network servo drives——Power range:100W-7.5KW Speed ring bandwidth 1.2KHz; Support MODBUS RTU and EtherCAT communication protocols

Order No.:A4N-B1012-M200/A4N-B1015-M200/A4N-B2012-M200/A4N-B2015-M200/A4N-B4012-M200/A4N-B4015-M200/A4N-B7512-M200/......

Specification:A4N network servo drives——Power range:100W-7.5KW Speed ring bandwidth 1.2KHz; Support MODBUS RTU and EtherCAT communication protocols; Support two channel probe assist function, latched position; Optional support 2500 line incremental encoder and 17Bit bus absolute encoder; Support vibration suppression, rigid class selection, inertia recognition.

Product Description

A4N standard servo driver

Power range: 100W-7.5KW

Speed ring bandwidth 1.2KHz

Support high speed pulse input control mode, differential mode 500KHz, collector mode 200KHz;

Support MODBUS RTU and CANopen communication protocols;

Support two channel probe assist function, latched position

Optional support 2500 line incremental encoder and 17Bit bus absolute encoder;

Support vibration suppression, rigid class selection, inertia recognition.


Technical Spec

Performance Parameters


Dimension

(W×H×D

A type

50x160x173 mm

C type

90x160x183 mm

E type

100x250x230 mm

Input power supply

Control power supply


A type

Single phase AC200V~250V±10%50/60Hz

C type

Single phase AC200V~250V±10%50/60Hz

Single phase AC380V~440V±10%50/60Hz

E type

Single phase AC380V~440V±10%50/60Hz

Main

power supply

A type

Single phase/three phase AC200V~250V±10%50/60Hz

C type

Single phase/three phase AC200V~250V±10%50/60Hz

Three phase AC380V~440V±10%50/60Hz

E type

Three phas AC380V~440V±10%50/60Hz

Rated drive current

A type

6AAC220V

12AAC220V/7.4AAC380V

20AAC380V

C type

E type

High voltage terminal

Terminal form

A/C type: plug-in terminal

E type :fence terminal

Terminal digits

A/C type12bits

E type13bits

Control terminal

44-pin

Encoder feedback

Bus absolute value encoder (17bit encoder)

Photoelectric encoder

Rotary encoders (Type C and Type E) interface reserved

Communication function

standard 485 port

Modbus port,4.8Kbps~115.2Kbps

standard RJ45 port

CANopen port,20Kbps~1000Kbps

Isolation function

Power/communication isolation; Encoder input isolation; Digital quantity input/output isolation

Built-in brake resistance

A type

550W

C type

100Ω80W

E type

40Ω100W

Common DC bus

The drive output interface supports common DC bus function

Protection function

Overvoltage, undervoltage, overcurrent, overload, overheat, overspeed, communication anomaly, register anomaly, encoder error, etc

Display and operation

5 bit LED display, 5 bit button operation

DC bus indicator light



Parameter Settings

Buttons or MagicWorks Tuner software

Permanent storage when power-down

Keep all optional parameters permanently

Overload capacity

100W~1.0kW servo support 3 times overload

1.5KW and above servo support 2 times overload

Cooling way

Fan cooling (natural cooling below type A 750W)


Rate of velocity variation (at rated speed)

Rate of load variation

0 ~ 100% : less than 0.1%

Voltage variation rate

Rated voltage ±15% : 0%

Rate of temperature variation

25±25℃ : ±0.1% or less

Digital input (6 DI)

Positive direction travel limit, reverse direction travel limit, latch signal, origin signal, etc.

Pin function can be allocated through software configuration parameters to input effective logic level

Digital output (3 DO)

Servo ready, alarm output, brake release, command completion output, positioning completion output, speed arrival, torque limit arrival, etc.

Pin function can be allocated through software configuration parameters to output effective logic level

Modbus communicationod

Communication interface number

1 RS485 port

Communication standard

Standard ModBus RTU communication protocol supports master station to read and write single/multiple parameters

Communication baud rate

4.8K9.6K19.2K38.4K57.6K115.2K

Maximum number of sites

32 stations per segment

Isolation

Communication port isolation

EtherCAT communication

Support services

CoE(PDOSDO)

Synchronously

DC- distributed clock

Baud rate

100Mbit/s100base-TX

Soft start/stop

Acceleration and deceleration can be set as 0~10s/1000rpm.

S curve adds and subtracts velocity

The acceleration and deceleration time of S-curve can be set in PP and PV modes.

Back to the original function

Can specify the speed, acceleration and origin reset method, support 21 back to the original mode.

The probe function

The high-speed digital input position latch signal is taken as the event trigger signal, and the current axis position can be stored as the parameterized event along the effective path. The position data will be stored immediately by the control system, without the occurrence of leakage trigger caused by delay.

Brake resistance protection function

The resistance value and power of internal and external brake resistance can be set to drive the internal automatic calculation of output duty ratio of limited brake tube discharge to prevent the driver and brake resistance from overheating and damage.

Absolute value multi-loop data clearing

The multi-loop data of the encoder can be cleared by the upper computer or the key panel.

Whether an optional parameter is stored to EEPROM

Communication change parameters can be set to save directly to EEPROM to facilitate the client to configure servo parameters directly through communication.

Monitoring function

Internal oscilloscope, PC on Windows application software, can monitor operating parameters, such as speed, position, current, etc



Maximum input pulse frequency

Difference mode: 500KHz, open collector mode: 200KHz

Input pulse signal form

Pulse + direction, A +B phase, CW+CCW

Command control mode

External pulse instruction /16 section communication register instruction

Feedforward compensation

0~1000‰ (set resolution 1‰)

Position error setting

0~32767 instruction unit (set resolution as 1 instruction unit)

Electronic gear ratio

N

1~10000 (2500 lines photoelectric encoder); 1~65535 (17-bit bus encoder). 1/200 < N/M < 200.

M


Speed/

torque control mode

Command control mode

Speed control mode: 8 internal speed instructions /32 communication register instructions

Torque control mode: 32 segment communication register instruction

Instruction smoothing mode

Speed control mode: low-pass filtering, smoothing time constant 0~2500x10us

Torque limitation (Speed control mode)

Internal parameters

Speed limit (Torque control mode)


Using environment

Working temperature

0~45

Keep the temperature

-20~70

Humidity

Work/preservation ≤90% RH without condensation

IP rating

IP20

Installation location

No corrosive gas, flammable gas, oil mist or dust, etc

Installation

Vertical installation

Elevation

Altitude ≤1000m

Atmospheric pressure

86Kpa~106Kpa


Power

(kW)

Power supply

Drive order number
CTSD ***-*****-****

Drive SIZE

Motor order number
CTSD ***-*****-****

Motor flange adaptor

Rated speed
rpm

0.1

Single phase/three phase
AC 220V

A4N-B1012-M200

A

M14-B1012-K100

M14-B1012-K110

40

3000

A4N-B1015-M200

A

M14-B1017-M100
M14-B1017-M110

40

3000

0.2

A4N-B2012-M200

A

M16-B2012-M100

M16-B2012-M110

60

3000

A4N-B2015-M200

A

M16-B2017-M100
M16-B2017-M110

60

3000

M16-B2018-M100

M16-B2018-M110

0.4

A4N-B4012-M200

A

M16-B4012-M100

M16-B4012-M110

60

3000

A4N-B4015-M200

A

M16-B4017-M100
M16-B4017-M110

60

3000

M16-B4018-M100

M16-B4018-M110

0.75

A4N-B7512-M200

A

M18-B7512-M100

M18-B7512-M110

80

3000

A4N-B7515-M200

A

M18-B7517-M100
M18-B7517-M110

80

3000

M18-B7518-M100

M18-B7518-M110

1.0

A4N-B1022-M200

A

M18-B1022-M100

M18-B1022-M110

80

2500

A4N-B1025-M200

A

M18-B1027-M100
M18-B1027-M110

80

2500

M18-B1028-M100

M18-B1028-M110

A4N-B1022-M201

A

M2D-B1022-M200

M2D-B1022-M210

130

2500

A4N-B1025-M201

A

M2D-B1025-M200
M2D-B1025-M210

130

2500

M2D-B1026-M200

M2D-B1026-M210


Power

(kW)

Power supply

Drive order number
CTSD ***-*****-****

Drive SIZE

Motor order number
CTSD ***-*****-****

Motor flange adaptor

Rated speed
rpm

1.5

Single phase/three phase
AC 220V

A4N-B1522-M200

C

M2D-B1522-M200

M2D-B1522-M210

130

(6N.M)

2500

A4N-B1525-M200

C

M2D-B1525-M200
M2D-B1525-M210

130

(6N.M)

2500

M2D-B1526-M200

M2D-B1526-M210

A4N-B1522-M201

C

M2D-B1522-M201

M2D-B1522-M211

130

(10N.M)

1500

A4N-B1525-M201

C

M2D-B1525-M201
M2D-B1525-M211

130

(10N.M)

1500

M2D-B1526-M201

M2D-B1526-M211

2.0

A4N-B2022-M200

C

M2D-B2022-M200

M2D-B2022-M210

130

2500

A4N-B2025-M200

C

M2D-B2025-M200

M2D-B2025-M210

130

2500

2.3

A4N-B2322-M200

C

M2D-B2322-M200

M2D-B2322-M210

130

1500

A4N-B2325-M200

C

M2D-B2325-M200

M2D-B2325-M210

130

1500

3.0

A4N-B3022-M200

C

M2D-B3022-M200

M2D-B3022-M210

130

2500

A4N-B3025-M200

C

M2D-B3025-M200

M2D-B3025-M210

130

2500

1.5

Three phase
AC 380V

A4N-A1525-M201

C

M2D-A1525-M201

130

1500

2.3

A4N-A2325-M200

C

M2D-A2325-M200

130

1500

3.0

A4N-A3022-M200

C

M3I-A3023-M200

M3I-A3023-M210

180

1500

A4N-A3025-M200

C

M3I-A3025-M200

M3I-A3025-M210

180

1500

4.5

A4N-A4522-M200

E

M3I-A4523-M200

M3I-A4523-M210

180

1500

A4N-A4525-M200

E

M3I-A4525-M200

M3I-A4525-M210

180

1500

5.5

A4N-A5522-M200

E

M3I-A5523-M200

M3I-A5523-M210

180

1500

A4N-A5525-M200

E

M3I-A5525-M200

M3I-A5525-M210

180

1500

7.5

A4N-A7525-M200

E

M3I-A7525-M200

M3I-A7525-M210

180

1500


Installation
