- Product Description
-
Order Data
Product Name
Specification
Order No.

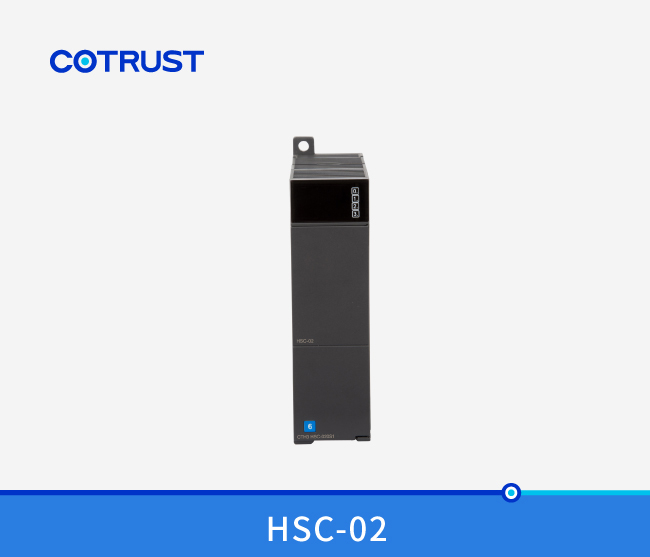

Counting module
High-speed Counting Modules,2*500KHz singal input
CTH3 HSC-020S1
- Technical Spec
-
Physical Characteristics
Dimension(W×H×D)
34×115×100 mm
Power Consumption
Bus voltage supply
+5V DC
Bus current supply
100mA
LED lights Diagnostics
Signal Indicator
On:signal input,Off:without signal input Number of input channels
2
Differential input Signal voltage:5VDC
Maximum input frequency:2KHzSingle-ended input Signal voltage:24VDC
Maximum input frequency:500KHz
Allowable range of signal duty cycle:40%-60%
- Installation
-
Size Diagram
Wiring Diagram
