- Product Description
-
Order Data
Products Name
Specification Order No.
DIT-080S1 Digital Input
8*24VDC
CTH3 DIT-080S1
DIT-160S1 Digital Input
16*24VDC
CTH3 DIT-160S1
DIT-320S1 Digital Input
32*24VDC
CTH3 DIT-320S1
- Technical Spec
-
Performance Parameters
stics
DIT-080S1
DIT-160S1
DIT-320S1 Dimension（W×H×D）
34×115×100 mm
Number of inputs
8
16
32 Current consumption
24V DC
+5Vbus
-60mA
-80mA
-
130mA
Input Type
Leak and source Rated input voltage
24V DC，6mA
Input Voltage Range
20.4~28.8V DC
Logic 1 (min)
15V DC,2.5mA
Logic 0 (Max)
5V DC, 1mA
Input filter 0.2ms，0.4ms，0.8ms，1.6ms，3.2ms，6.4ms，12.8ms，default 6.4ms Allowable leakage current(maximum) 1mA
surge current
35VDC，last 0.5s
Isolation points for each group 8/16/32 Contact resistance
6.6Ω
Input frequency (maximum) 1KHz Isolation 500VAC,last 1min Cable length
Shield
500m
Unshielded
150m
- Installation
-

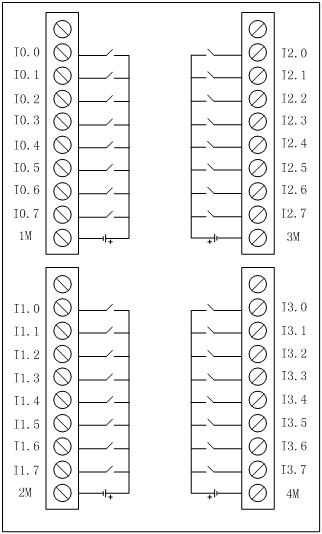

Wiring Diagram
1. DIT-080S1
2. DIT-160S1
3. DIT-320S1
