COTRUST following filling machine control system
2021.09.18
The manufacture of clothing, food and housing is often inseparable from intelligent production equipment.
The "invisible champion" is the automatic control system of mechanical equipment.
COTRUST Following filling machine control system
High efficiency and precision filling!
（Application of COTRUST following filling machine control system）
What scenarios is the following filling machine used?
Filling machine used for liquid filling equipment, belongs to packaging machinery measuring filling machinery.
Applicable scenario
Liquid filling mainstream trend
Following filling machine
Traditional filling machine
▼
Negative pressure filling machine
Equipment needs to stop waiting
low efficiency
VS
Following filling machine
▼
Conveyor belt without stop
high efficiency
Following filling machine control system can achieve high filling precision, with HMI can set the filling parameters directly. Easy to setting, easy to operate,one key adjustment machine.
Multi-station -- take double station for example

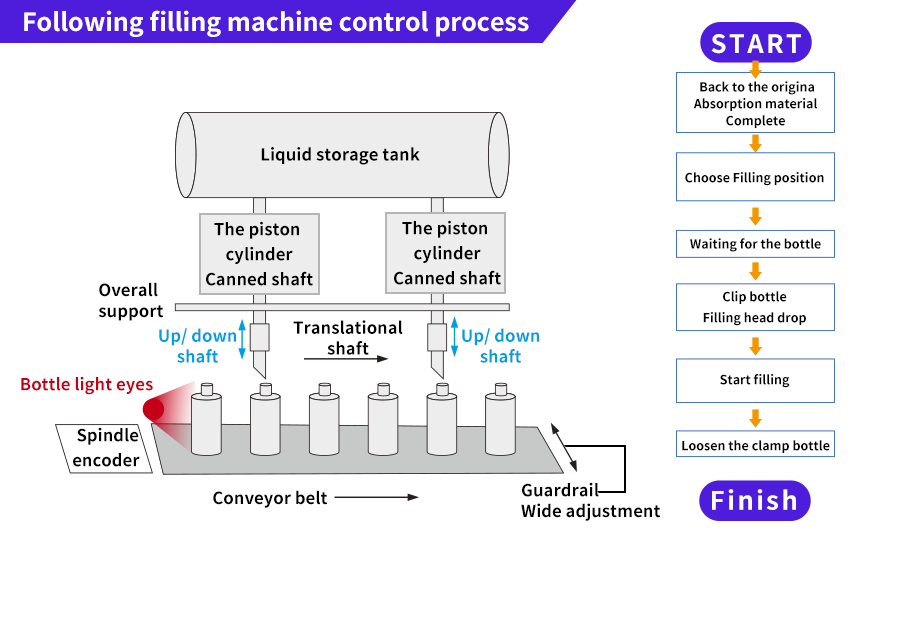

Following filling machine control process
COTRUST
The empty bottles are transferred to the conveyor belt of the filling machine according to the material conveying line, and the position of each bottle is obtained according to the light eye of the bottle measurement. Each can automatically follows, and the liquid is filled intelligly, without leakage or refilling.
COTRUST Following filling machine system

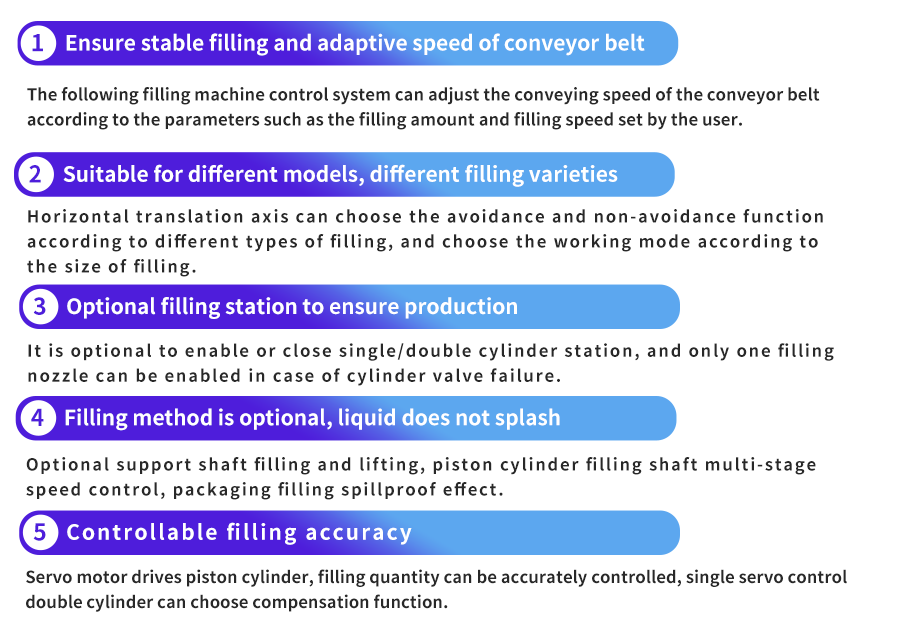

Technological characteristics
COTRUST
COTRUST control system-Following· filling machine

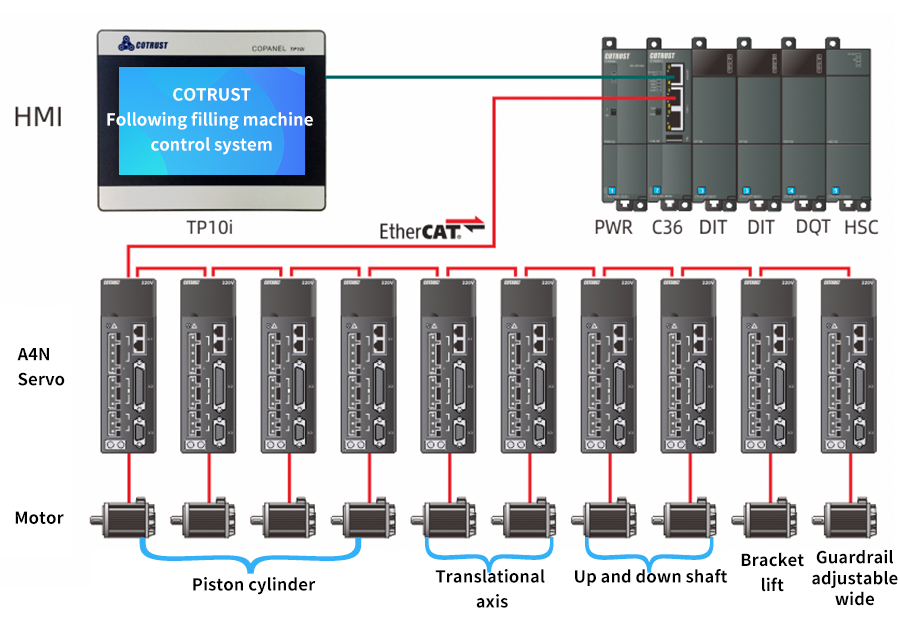

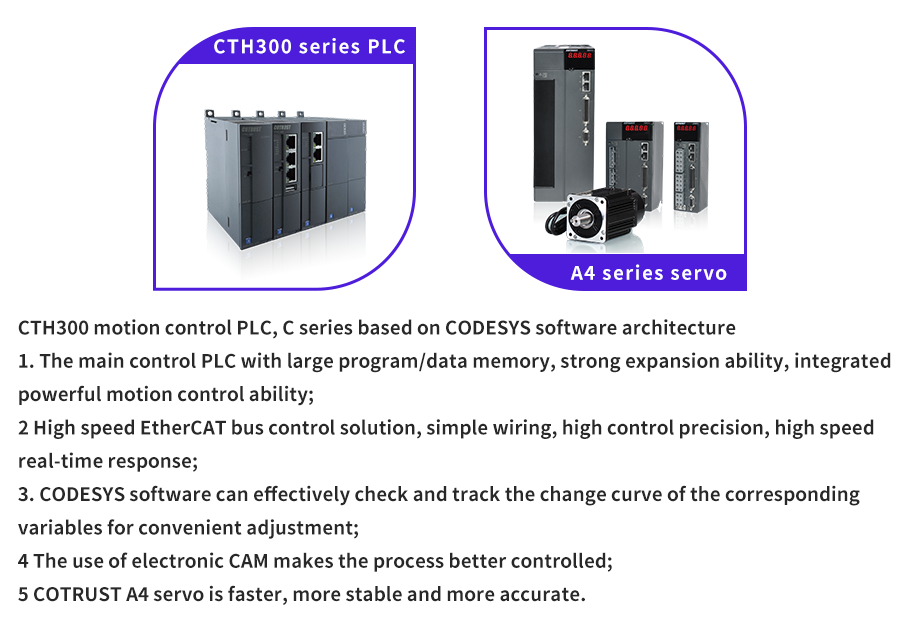

The control system of the following filling machine adopts COTRUST CTH300-C series PLC, which is connected with 10 sets high performance A4N servos through EtherCAT bus for driving, realizing multi-station precision filling. Production process configuration of TP10i Ethernet HMI can set the filling amount directly, provide multi-section position multi-function operation, easy to use, one-key adjustment machine.

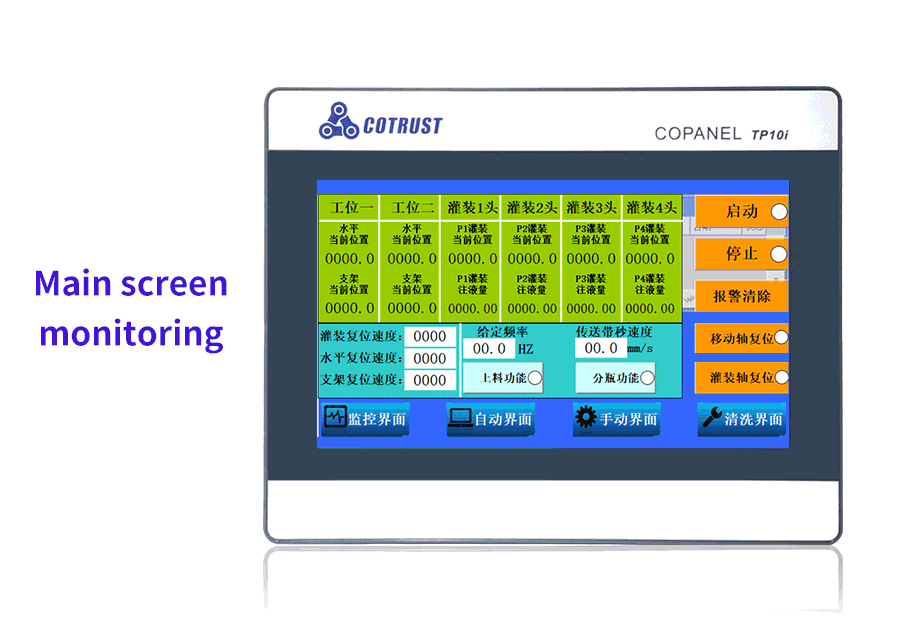

HMI control system
▶
The system selects a set of TP10I Ethernet touch HMI configuration communication, better to provide multi-position operation, convenient for the operator to debug, save debugging time,and provide more functional operation.
The reason for choose COTRUST control system
COTRUST
Suitable for single position/double position /4 positions of different filling machine; Suitable for bottles of different specifications.
A High position filling: the filling head shall directly fill at the corresponding high position until the filling is completed. (Suitable for non-foaming items)
B Filling and lifting: the filling head go down to the lowest position and fill for a period of time. The support shaft moves to the position according to the slow lifting speed until the filling is completed.
Through PLC module to collect the relevant data, electronic CAM to achieve the same speed, multi-speed control liquid filling, to ensure the synchronization and precision of filling.
The corresponding buttons of different stations on the touch screen can set different parameters and reset the alarm operation.
The whole set of control system PLC, servo and HMI are independently developed by COTRUST, with high stability.
COTRUST following filling system has been successfully applied to a large number of customer sites, equipped with professional filling technical support team, select COTRUST can realize fast machine adjustment, fast line change production, higher efficiency!
COTRUST

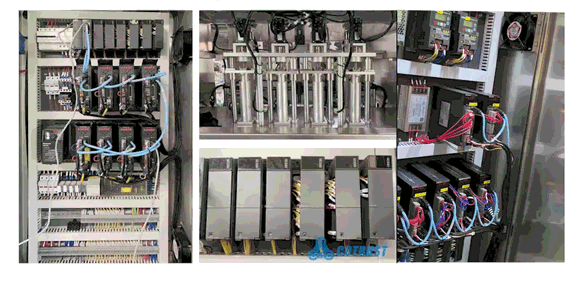

following filling machine power cabinet
