- Product Description
-
CTF200 mini economic inverter is positioned as a common application of small power OEM matching market, adopting vector V / F control technology.
Applications
Fan water pump, packaging machinery, food machinery, textile machinery, automatic assembly line, etc
CTF200 Series model and technical data

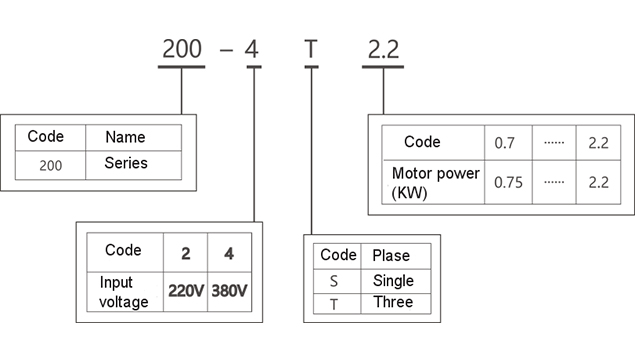

Type Rated Capacity Rated Input Rated Output Current(A) Adapter (KVA) Current (A) Motor(KW) Single-phase power supply 200～240V 50/60Hz CTF200-2S0.4 1 5.4 2.3 0.4 CTF200-2S0.7 1.5 8.2 4 0.75 CTF200-2S1.5 3 14 7 1.5 Three-phase power supply 380～480V 50/60Hz CTF200-4T0.7 1.5 3.4 2.1 0.75 CTF200-4T1.5 3 5 3.8 1.5 CTF200-4T2.2 4 5.8 5.1 2.2 CTF200 Series Naming Rules
- Technical Spec
-
CTF200 series of inverters have many common functions, such as PID, multi-stage speed, DC braking, MODBUS communication, etc., with complete functions and smaller volume, which can further reduce the installation space.
CTF200 series Specifications
Item Specifications Basic functions Maximum frequency V/F control: 320Hz Carrier frequency 0.5kHz-16kHz, The carrier frequency can be adjusted automatically based on the load features. Input frequency resolution Digital setting: 0.01Hz Analog setting: maximum frequency × 0.025% Control mode V/F Control Start-up torque 0.5Hz/150% Speed range 1:100 Steady speed accuracy ±0.5% Overload capacity 150% rated current 60s; 180% rated current 3S Automatic torque lifting Manual torque lifting 0.1%-30.0%. Three ways of V/F curve Straight-line type; Multi-point type; N-power V/F curve (1.2 power, 1.4 power, 1.6power, 1.8power, 2power ,square) Two ways of V/F separation Two types: complete separation and half separation Ramp mode Straight-line ramp or S-curve ramp, Four groups of acceleration /deceleration time with the range of 0.0s-6500.0s DC braking 0.00Hz - maximum output frequency, Braking time: 0.0s - 36.0s Braking action current value: 0.0% - 100.0%. JOG control JOG frequency range: 0.00Hz-50.00Hz, JOG acceleration / deceleration time: 0.0s-6500.0s On board multiple preset speeds It implements up to 16 speeds via the simple PLC function or combination of DI terminal states. Built-in PID It realizes process-controlled closed-loop control system easily. Automatic voltage adjustment (AVR) It can keep constant output voltage automatically when the main voltage changes. Torque limitation and control It cam limit the torque automatically and prevent frequent over current tripping during the running process. Individualized functions Safety self-inspection of power-on peripheral equipment It can realize the safety detection of peripheral equipment such as grounding, short circuit and so on. Over-voltage and over-loss speed control Automatic limit of current and voltage during operation to prevent frequent over-current and over-voltage tripping Fast current Limit Minimizing overcurrent fault and protecting frequency converter in normal operation Common DC bus function It can realize common DC bus functions of multiple frequency converters. Timing control Timing control function: setting time range 0h-65535h Running channel Running command sources Three channels: operation panel, control terminal and serial communication port .They can be switched over between these sources in various ways. Frequency sources There are total 8 of frequency sources, such as digital setting, analog voltage setting, analog current setting, serial communication port setting. They can be switched over these sources in various ways. Auxiliary frequency command 8kinds of auxiliary frequency instructions. It can realize auxiliary frequency fine adjustment and frequency synthesis flexibly. Input terminal Four digital Input terminals, One analog input terminals, can be used as voltage or current input. Internal + 10V power supply, do not support external power supply, if live input needs to add intermediate relay. Output terminal One relay output terminals One analog output terminals, 0V-10V, can realize setting frequency and transmission. Output frequency and other physical quantities Display and keyboard LED display Display monitoring parameters, output frequency, set frequency, bus voltage, etc. Protection Function Short circuit detection , input and output phase loss protection, overcurrent protection, overvoltage protection, undervoltage protection , overheat protection and overload protection Optional parts Brake assembly Ambient Installation location Indoor ,free from direct sunlight, dust-free, corrosive gases, combustible gases, oil smoke, vapour, drip or salt, etc. Altitude <1000m Ambient temperature -10°C～+40°C (ambient temperature is 40°C～50°C , please derate to use) Humidity Less than 95 k% RH, no water droplet condensation Vibration less than 5.9m/s 2 (0.6g) Storage temperature -20℃～+60℃ IP level IP20 Pollution grade PD2 Power distribution system TN，TT
- Installation
-
1. Product Profile

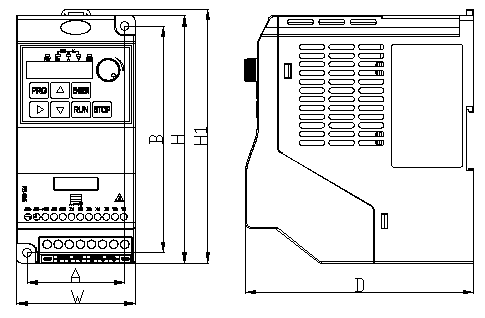

( 0.4kW～2.2kW Outline Size and Installation Size)
1.1 Profile and Installation Hole Size
Shell code Model Installation Hole Position
(mm)Dimension (mm) Installation Diameter (mm) Weight (kg) A B H H1 W D Z2 CTF200-2S0.4 56 130 142 145.5 68 131 5 0.8

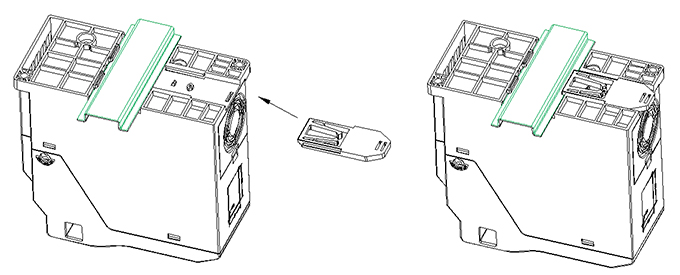

（CTF200 installation diagram of guide rail)

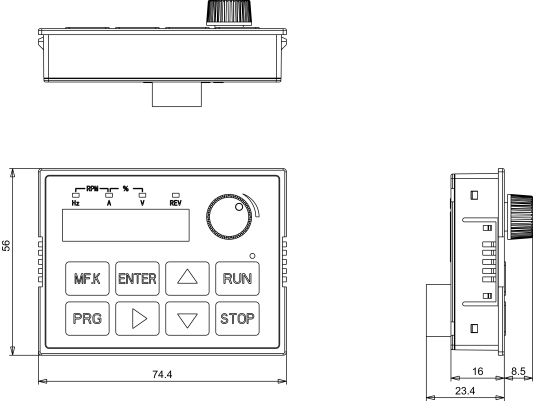

(The dimension of external panel CTF-KB200)

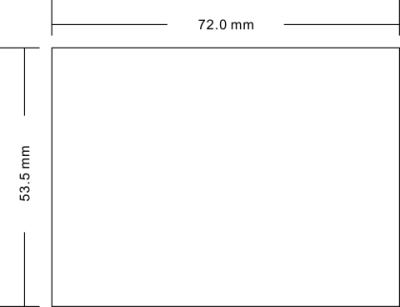

( The installation hole size of external panel CTF-KB200)

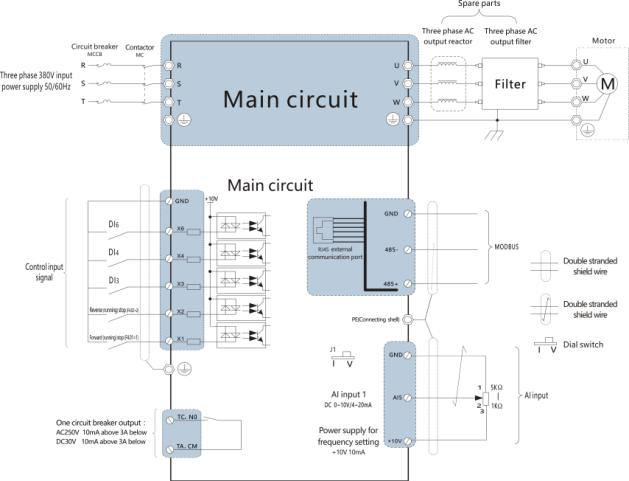

2. Typical connection diagram
