- Product Description
-
Order Data
Product Name
Specification
Order No.

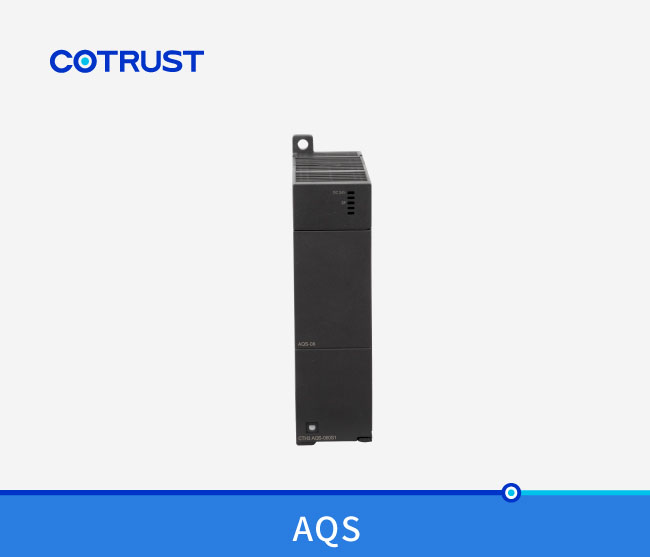

AQS-04 Analog Modules
Analog voltage and current output,4AQ x 12bit
CTH3 AQS-040S1
AQS-08 Analog Modules
Analog voltage and current output,8AQ x 12bit
CTH3 AQS-080S1
- Technical Spec
-
Performance Parameters
Characteristics
AQS-040S1
AQS-080S1
Type of Output
Voltage or current
Number of outputs
4
8
Output Range
Voltage
current
±10V
0~20mA， 4mA~20mA
Protection
Misconnection voltage output
Voltage short circuit resistant
Max.30V DC
Yes
Data Format
Voltage
current
When full mileage
-32000~+32000
0~+32000
Setup time
Voltage Output
Current output
100us
2ms
Load Impedance
Voltage Output
Current output
5000Ω（max）
500Ω（min）
Resolution
Unipolar: 12bit
Bipolar: 11bit + sign bit
Accuracy
Voltage
current
Typical values: full scale of ± 0.5%, worst case: ± 2% of full scale
Typical values: full scale of ± 0.6%, worst case: ± 2% of full scale
Isolation
Power Isolation
Field to Logic
500V AC
500V AC
- Installation
-
Wiring Diagram
1. AQS-040S1
2. AQS-080S1
