- Product Description
-
Order Data
Specification
Order No.

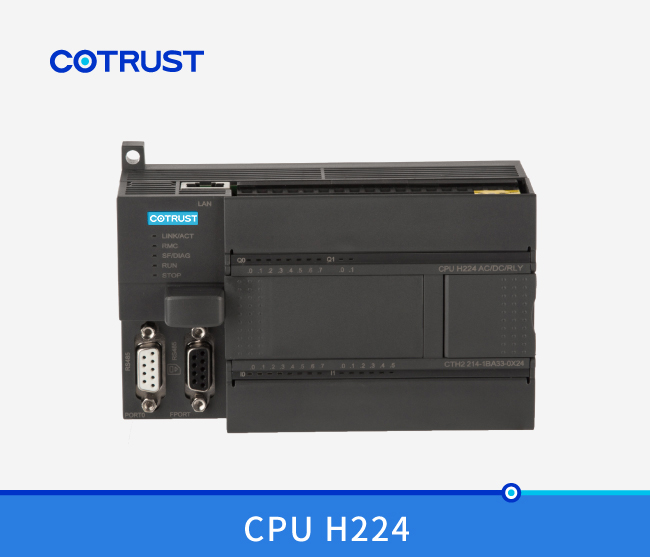

CPU H224 basic:12KB program memory/8KB data memory,220VAC power supply,14DI*10DO relay output,2A,1*PPI,1*FPORT,1*Ethernet port,support analog expansion board,and expansion module are not supported.
CTH2 214-1BA33-0X24
- Technical Spec
-
Performance Parameters
Physical Features
Dimension(W×H×D)
137×80×62mm
Power dissipation
7W
Memory Features
Program memory
8KB+4KB
Data memory
8KB
General Features
Timers total
1ms
10ms
100ms
256
4
16
236
Counters total
256
Internal memory bits
256
Stored permanently on power down
Data permanent stored
Sequential control relay (S)
256
Time Interrupts
2 with 1ms resolution
Edge Interrupts
4 rising edges and/ or 4 falling edges
Analog adjustment
Non
Boolean execution speed
0.22µs
Float execution speed
12µs
Clock
embedded ,precision ±120s/m
BD expansion board interface number
1
System indicator
3,STOP、RUN、SF
RUN/STOP dial code
Yes,2
Programming card
Support
Memory card
Non Support
Rated input voltage
24VDC
Power supply
Native and extended bus+5V
+24V
660mA
200mA
Integrated Communication Function
Communication Interface
2 communication ports ,PORT0:PPI/Free port,RS485;FPORT0:PPI/Free port,RS485
PPI baud rates(baud)
9.6k、19.2k and 187.5k
Freeport baud rates(baud)
1.2k ~ 115.2k
Maximum cable length
Isolated repeater applied
Isolated repeater unapplied
When it is 1000 m, baud rate is 187.5k; when it is 1200 m, 38.4k.
50m
Maximum number of stations
32 stations per segment,126 stations per network
Maximum number of masters
32
Physical interface
2 RS485 port
Isolation
Non
Ethernet Function
Communication port
1 Ethernet port
Communication standard
IEEE802.3 standard
Communication speed
10Mbps and 100Mbps self-adaption
Adaptive cross connection
Non support
Interface to industrial Ethernet(10/100Mbps)
RJ45 port
Protocol type
UDP/TCP protocol
Support MICO Ethernet programming, support Ethernet communication between PLC.
Collocation method
Support the upper computer through the Ethernet port search PLC,
support the mouth download system configuration.
Max Connections
Each PLC supports up to 8 UDP connections and up to
4 TCP connections.
The maximum number of IT connections
8 UDP_PPI connections, with 4 master stations and
4 slave stations.
4 ModBus_TCP connections, 2 master stations and
2 slave stations.
User data number
Up to 200 bytes are used for TCP/IP transmission.
Up to 240 bytes are used for ModBus_TCP transport.
Port
local:1~65535
remote server:8888
Boot time or restart time after reset
3 seconds
Indicator lamp
Green RMC indicator: on: remote control in effect,
off: remote control out
Green Ethernet indicator: on: connection, flicker: transmission;
out: not connected
Maximum cable length
100m
Isolation
Communication port isolation
I/O Features
Number of integrated digital inputs
14
Input type
Sink/Source
Number of integrated digital outputs
10
Output type
Relay dry connect
Digital I/O mapping domain
128DI/1280DQ
Analog I/O mapping domain
32AI/32AQ
Maximum number of expandable I/O module
7
Maximum digital I/O configuration
IO:256(128DI/128DO)
Maximum analog I/O configuration
64(32AI/32AQ)
Pulse catch inputs
14
High-speed counters
Total
Uniphase counters
Bi-phase counters
4
4×50KHz
1×30KHz
Digital Input Features
Number of integrated digital input
14
Input type
Sink/ Source
Rated voltage
24V DC
Input voltage range
20.4-28.8V DC
Surge voltage
35V DC,continuously 0.5s
Logical 1 Signal (minimum)
Logical 0 Signal (Maximum)
15 VDC,2.5mA
5 VDC,1mA
Allowable leakage current
1mA
Input filter
3.4ms and 6.4ms
Isolation(field side to logical circuit)
500V AC,1min
Simultaneous input
14
Maximum cable length
Shielded
Unshielded
500 M(standard input)
50 M(high-speed counters input)
300 M(standard input)
Digital Output Features
Number of integrated digital output
10
Output type
Relay dry connect
Rated voltage
24VDC or 110V/220VAC
Output voltage range
5~30VDC:5~250VAC
Logical 1 Signal (minimum)
-
Logical 0 Signal (Maximum)
-
Rated current per point
2A
Rated current for each common point
8A
Leakage current (maximum)
-
Surge current(Maximum)
7A
Lamp load (maximum)
30W DC/200W AC
On resistance (contact)
0.2Ω
Isolation(field side to logical circuit)
-
Delay
Off to on:-
on to off:-
Contact life at rated load
100000 times on and off
Simultaneous input
All output point
Parallel output
Non
Maximum cable length
Shielded
Unshielded
500m
150m
- Installation
-
Wiring diagram
CTH2 214-1BA33-0X24 relay output wiring diagram
RS485 communication port definition
Connector
PIN
PORT0(RS485)
FPORT0(RS485)
1
Shell Grounded
Shell Grounded
2
logically
logically
3
RS485+signal B
RS485+signal B
4
Send the application RTS
Send the application RTS
5
logically
logically
6
+5V, series connection 100 Ω resistance
+5V, series connection 100 Ω resistance
7
+24V
+24V
8
RS485-signal A
RS485-signal A
9
NC
NC
shell
Shell Grounded
Shell Grounded
