- Product Description
-
Order Data
Order Data Order No.

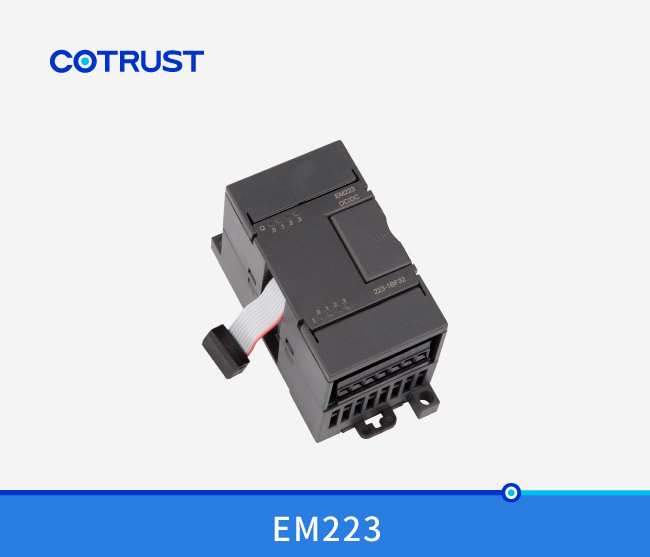

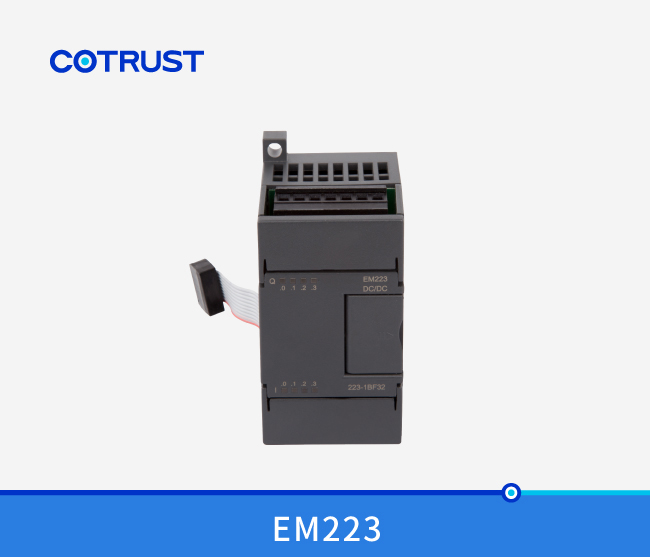

CTSC-200 EM223 Digital I/O Modules, 4 DI*24VDC, 4 DO*24V DC CTS7 223-1BF32 CTSC-200 EM223 Digital I/O Modules, 8 DI*24VDC, 8 DO*24V DC CTS7 223-1BH32 CTSC-200 EM223 Digital I/O Modules, 16 DI*24VDC, 16 DO*24V DC CTS7 223-1BL32
- Technical Spec
-
Performance Parameters
Specifictaion
EM223
4 DI / 4 DO, 24V DCEM223
8 DI / 8 DO, 24V DCEM223
16 DI / 16 DO, 24V DCPhysical Features
Dimensions(W×H×D) 46×80×62mm 71.2×80×62mm 138×80×62mm Power loss(dissipation) 2W 3W 5W From +5V (from I/O bus)
40 mA
80 mA 160 mA Input Features Number of integrated inputs 4 inputs 8 inputs 16 inputs Input type Sink/Source(IEC Type 1 sink) Input Voltage Maxumum continuous permissible 30 VDC Surge 35 VDC for 0.5 s Rated value 24 VDC at 4 mA, nominal Logic 1 signal(minimum) 15 VDC at 2.5 mA, minimum Logic 0 signal(maximum) 5 VDC ata 1mA, maximum Isolation(Field Side to Logic Circuit) Optical isolation(Galvanic) 500 VAC for 1 minute Isolation groups of 4 points 4 points 8 points Maximum input delay time 4.5ms Connection of 2 Wire Proximity Sensor(Bero) Premissible leakage current 1 mA, maximum Cable Length Unshielded(not HSC) 300 m 300 m 300 m Shielded 500 m 500 m 500 m Number of inputs ON Simultaneously 40℃ 4 8 16 50℃ 4 8 16 Output Features
Number of integrated outputs 4 outputs 8 outputs 16 outputs Output type Solid State-MOSFET
Output voltage
Rated Value
Permissible Range
Logic 1 signal at maximum current
Logic 0 signal with 10 kohm load
24V DC
20.4~28.8V DC
20V DC, minimum
0.1VDC, maximum
Output Current
Logic 1 signal
Number of output groups
Per group mounting (maximum)
Number of output ON (maximum)
Maximum current per group
Lamp load
contact resistance
Leakage current per point
Surge current
0.5A
2
4
8
2A
5W
0.3 ohm
10μA, maximum
8A，100ms
0.5A
2
8
16
4A
5W
0.3ohm
10μA,maximum
8A，100ms
0.5A
6
4/8
32
2/4A
5W
0.3ohm
10μA,maximum
8A，100ms
Isolation
500V AC for 1 minute
In group of
4 points
4 points
4/4/8 points
Output Delay
Off to On
On to Off50 μs, maximum
200 μs, maximum
Cable Length
Unshielded
150 m
Shielded
500 m
- Installation
-
Size Diagram
CTS7 223-1BF32
2.CTS7 223-1BH32
3.CTS7 223-1BL32
Wiring Diagram
