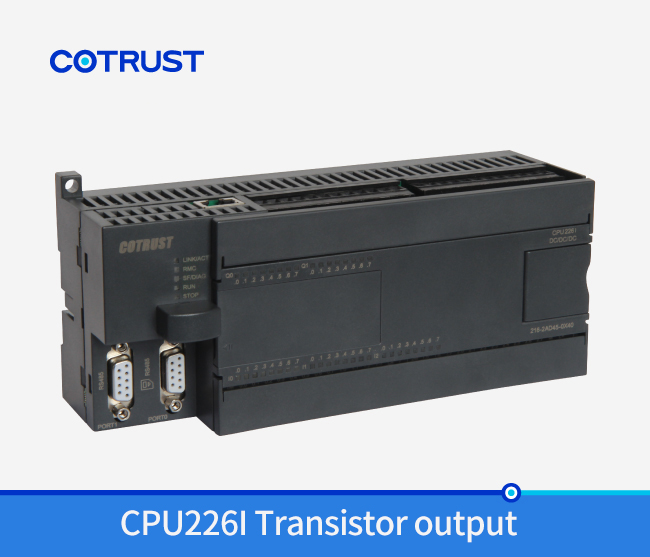

CPU226I,transistor output(216-2AD45-0X40)
Order No.:CTS7 216-2AD45-0X40
Specification:CPU226I:72KB program memory/110KB data memory,24VDC power supply,24DI/16DO transistor output,0.75A,2*PPI/FPORT,1*Ethernet port,dual pulse output(50KHz Pulse/Dir or 20KHz PTO/PWM),data permanent storage when power-down,support analog expansion board,CAN expansion board and RS485 expansion board.
Details -

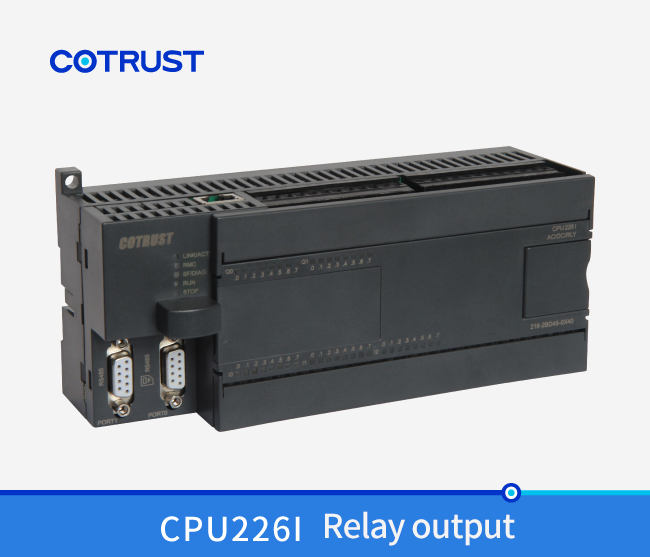

CPU226I,relay output(216-2BD45-0X40)
Order No.:CTS7 216-2BD45-0X40
Specification:CPU226I:72KB program memory/110KB data memory,220VAC power supply,24DI/16DO relay output,2A,2*PPI/FPORT,1*Ethernet port,data permanent storage when power-down,support analog expansion board,CAN expansion board and RS485 expansion board.
Details -

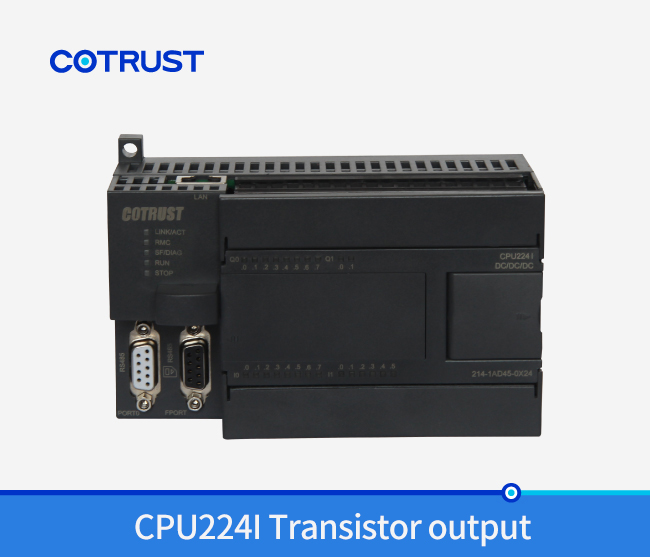

CPU224I,transistor output(214-1AD45-0X24)
Order No.:CTS7 214-1AD45-0X24
Specification:CPU224I:16KB program memory/108KB data memory,24VDC power supply,14DI/10DO transistor output,0.75A,1*PPI,1*FPORT,1*Ethernet port,dual pulse output(50KHz Pulse/Dir or 20KHz PTO/PWM),data permanent storage when power-down,support analog expansion board and CAN expansion board.
Details -

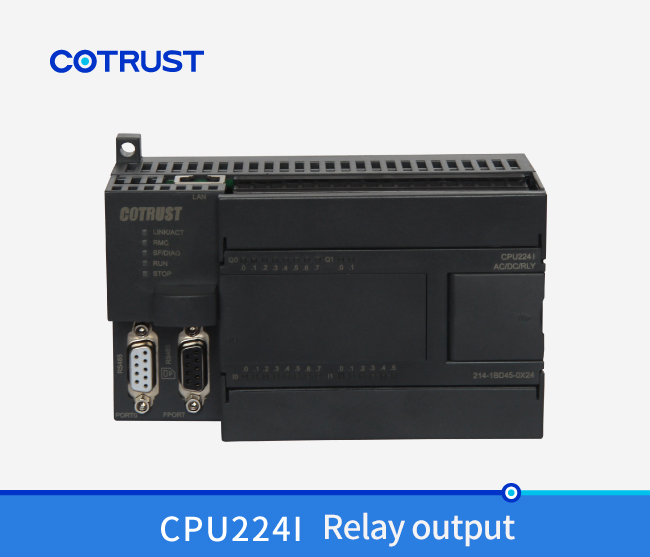

CPU224I,relay output(214-1BD45-0X24)
Order No.:CTS7 214-1BD45-0X24
Specification:CPU224I:16KB program memory/108KB data memory,220VAC power supply,14DI/10DO relay output,2A,1*PPI,1*FPORT,1*Ethernet port,data permanent storage when power-down,support analog expansion board and CAN expansion board.
Details -

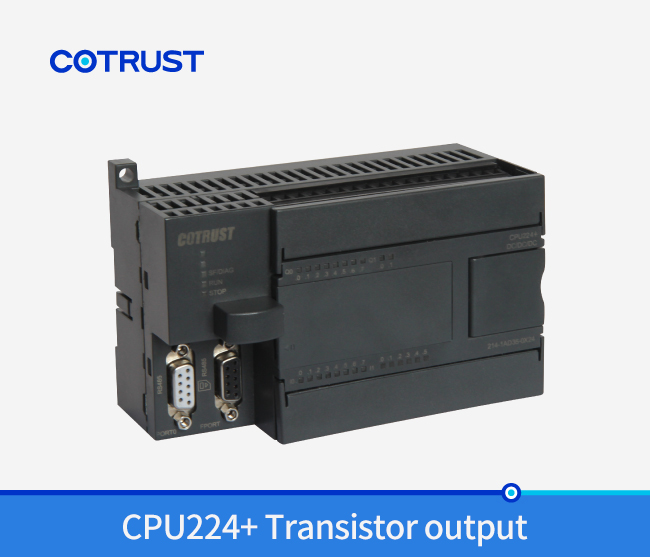

CPU224+,transistor output(214-1AD35-0X24)
Order No.:CTS7 214-1AD35-0X24
Specification:CPU224+:16KB program memory/108KB data memory,24VDC power supply,14DI*10DO transistor output,0.75A,1 PPI, 1 Free Port,2*50Khz output(Pulse /Dir or PTO/PWM), data permanent storage when power-down,support analog and CAN expansion board
Details -

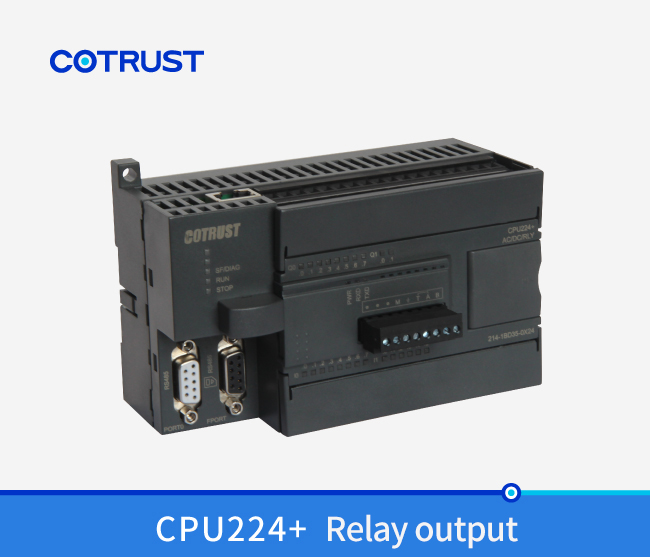

CPU224+,relay output(214-1BD35-0X24)
Order No.:CTS7 214-1BD35-0X24
Specification:CPU224+:16KB program memory/108KB data memory,220VAC power supply,14DI*10DO relay output,2A,1 PPI, 1 Free Port, data permanent storage when power-down,support analog and CAN expansion board
Details -

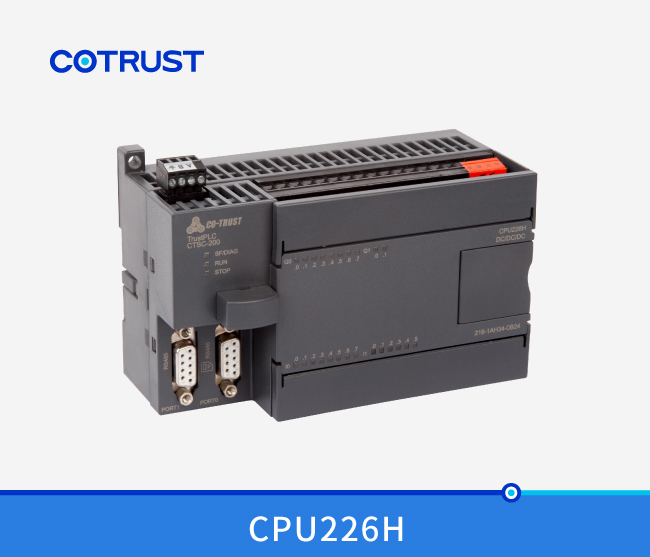

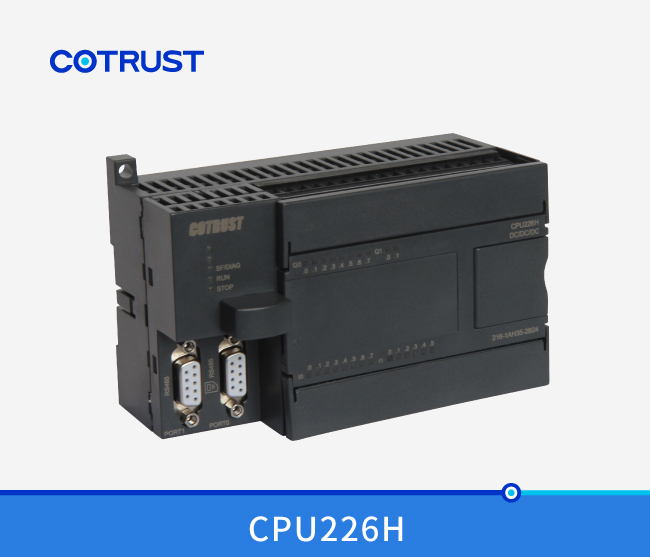

CPU226H,transistor output(216-1AH35-0B24)
Order No.:CTS7 216-1AH35-0B24
Specification:CPU226H:72KB program memory/110KB data memory,24VDC power supply,14DI*10DO transistor output,0.5A,2 PPI/Free Port,6* 200KHz high-speed counters,4*200KHz high-speed output(Pulse/Dir),use COTRUST motion control library,without linear and circular interpolation.data permanent storage when power-down,support analog,CAN and RS485 expansion board
Details -
CPU226H,transistor output(216-1AH35-2B24)
Order No.:CTS7 216-1AH35-2B24
Specification:CPU226H:72KB program memory/110KB data memory,24VDC power supply,14DI*10DO transistor output,0.5A,2 PPI/Free Port,6* 200KHz high-speed counters,4*200KHz high-speed output(Pulse/Dir),use COTRUST motion control library,Integrated linear and circular interpolation,data permanent storage when power-down ,support analog,CAN and RS485 expansion board
Details -

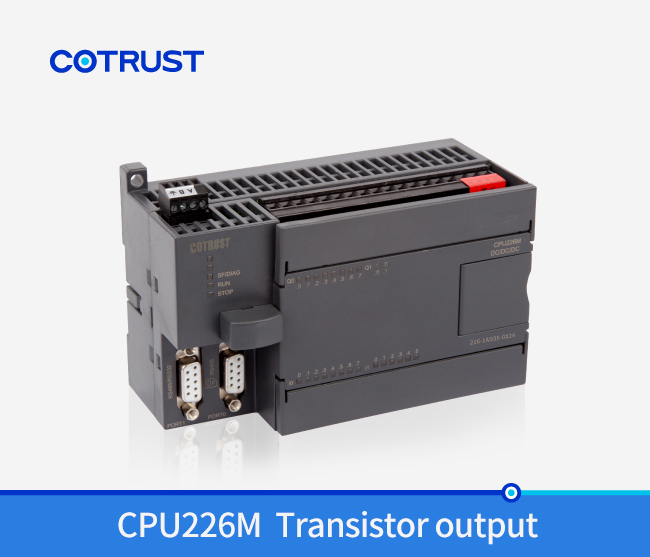

CPU226M,transistor output(216-1AD35-0X24)
Order No.:CTS7 216-1AD35-0X24
Specification:CPU226M:72KB program memory/110KB data memory,24VDC power supply,14DI*10DO transistor output,0.75A,2 PPI/Free Port,2*50Khz output(Pulse /Dir or PTO/PWM), data permanent storage when power-down,support analog,CAN and Rs485 expansion board
Details -

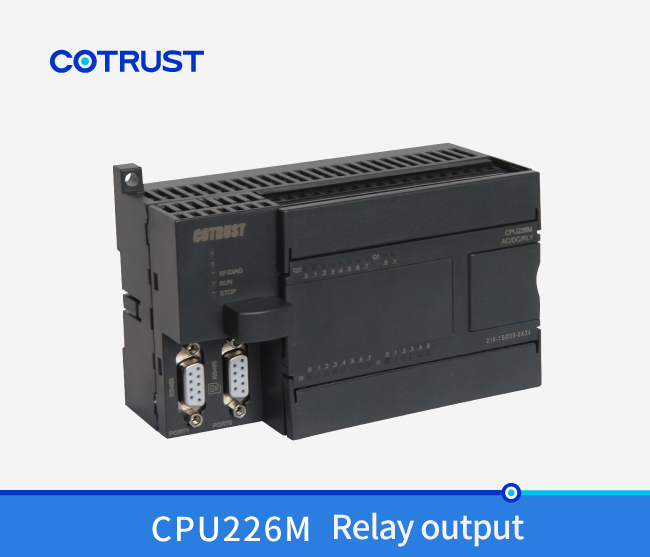

CPU226M,relay output(216-1BD35-0X24)
Order No.:CTS7 216-1BD35-0X24
Specification:CPU226M:72KB program memory/110KB data memory,220VAC power supply,14DI*10DO relay output,2A,2 PPI/Free Port, data permanent storage when power-down,support analog,CAN and RS485 expansion board
Details -
CPU226L,transistor output(216-2AD35-0X40)
Order No.:CTS7 216-2AD35-0X40
Specification:CPU226L:72KB program memory/110KB data memory,24VDC power supply,24DI*16DO transistor output,0.75A,2 PPI/Free Port,2*50Khz output(Pulse /Dir or PTO/PWM), data permanent storage when power-down,support analog,CAN and S485 expansion board
Details -

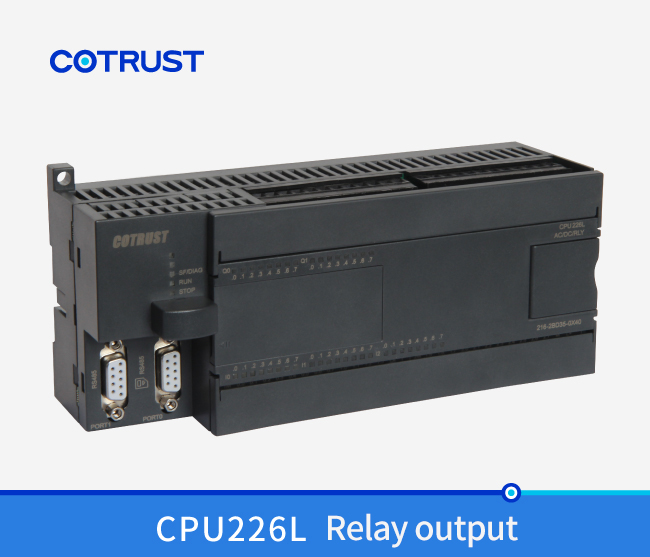

CPU226L,relay output(216-2BD35-0X40)
Order No.:CTS7 216-2BD35-0X40
Specification:CPU226L:72KB program memory/110KB data memory,220VAC power supply,24DI*16DO relay output,2A,2 PPI/Free Port,data permanent storage when power-down,support analog,CAN and RS485 expansion board
Details -

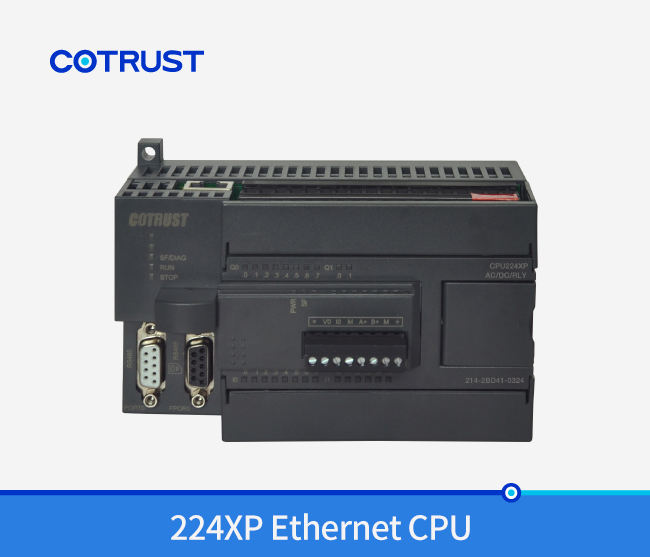

224XP Ethernet CPU,Transistor Output (214-2AD41-0324)
Order No.:CTS7 214-2AD41-0324
Specification:72KB Program Memory/10KB Data Memory,14DI*10DO,24VDC Power Supply,Transistor output,2AI/1AQ,2*PPI/FPORT,1*Ethernet port,2*50KHz output
Details -
224XP Ethernet CPU,Relay Output (214-2BD41-0324)
Order No.:CTS7 214-2BD41-0324
Specification:72KB Program Memory/10KB Data Memory,14DI*10DO,220VAC Power Supply,Relay output,2AI/1AQ,2*PPI/FPORT,1*Ethernet port
Details -

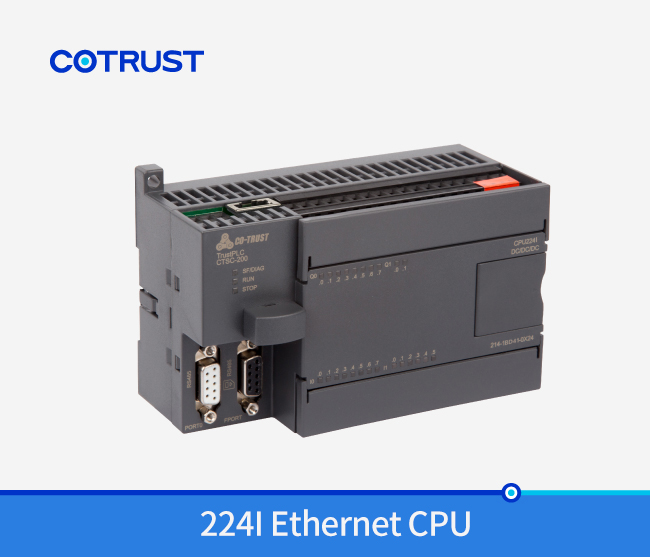

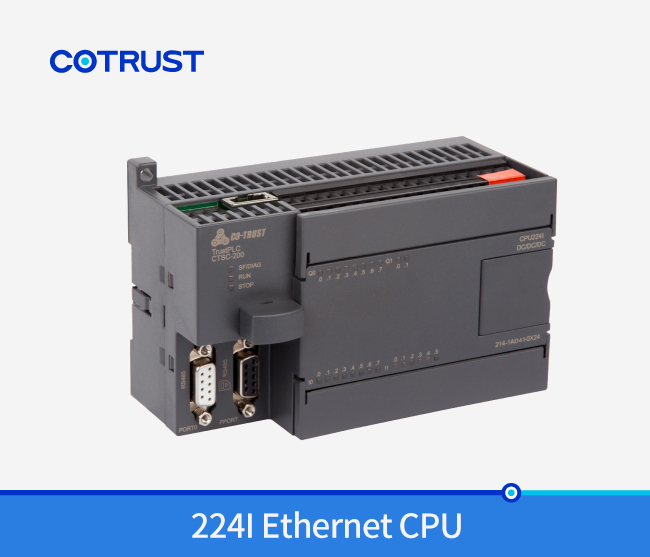

224 Ethernet CPU,Transistor Output (214-1AD41-0X24)
Order No.:CTS7 214-1AD41-0X24
Specification:CTSC-200 CPU224I,24VDC Power Supply,14DI*10DO,Transistor output,0.75A,16KB Program Memory/108KB Data Memory,1*PPI,1*FPORT,1*Ethernet port.
Details -
224 Ethernet CPU,Relay Output (214-1BD41-0X24)
Order No.:CTS7 214-1BD41-0X24
Specification:CTSC-200 CPU224I, 220VAC Power Supply,220VAC電源,14DI*10DO,16KB Program Memory/108KB Data Memory,1*PPI,1*FPORT,1*Ethernet port.
Details -

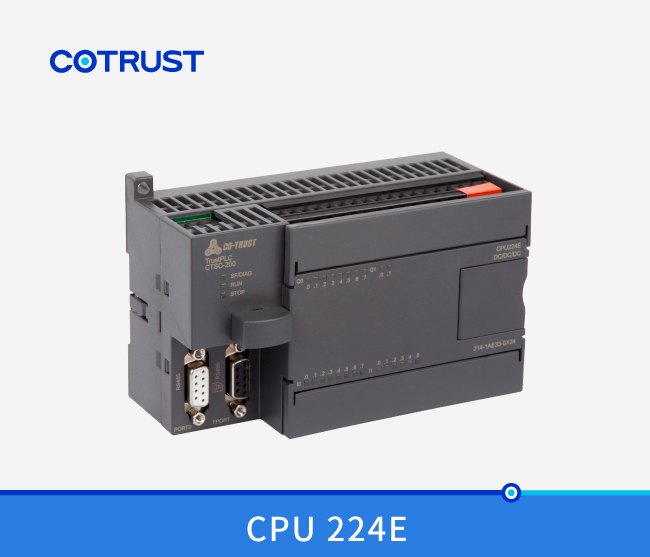

CPU224E,24 I/O Transistor output(214-1AE33-0X24)
Order No.:CTS7 214-1AE33-0X24
Specification:14DI×24VDC,10DO×24VDC/Relay ,dual-communication port
Details -
CPU224+,24 I/O Transistor output (214-1AD33-0X24)
Order No.:CTS7 214-1AD33-0X24
Specification:24VDC power supply,14DI/10DO×24VDC,dual-communication port
Details -
CPU224+,24 I/O Relay output (214-1BD33-0X24)
Order No.:CTS7 214-1BD33-0X24
Specification:220VAC power supply,14DI×24VDC,10DO×Relay,dual-channel communication,
Details -

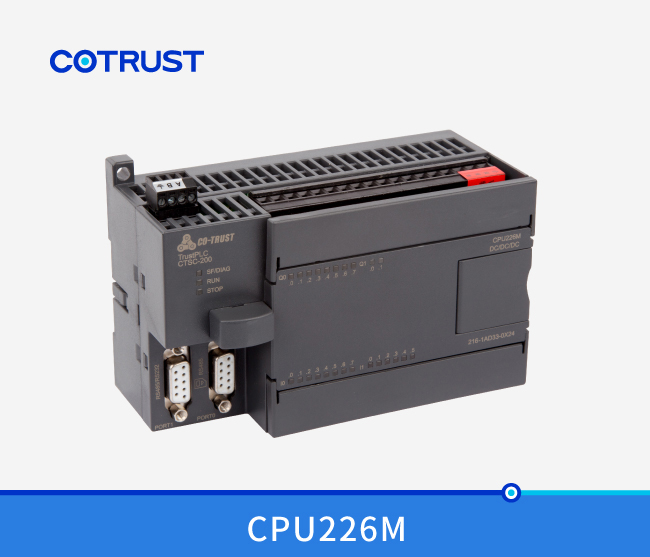

CPU226M,24 I/O, Transistor output(216-1AD33-0X24)
Order No.:CTS7 216-1AD33-0X24
Specification:24VDC power supply,14DI/10DO×24VDC,24KB Program Memory,108KB Data Memory
Details
