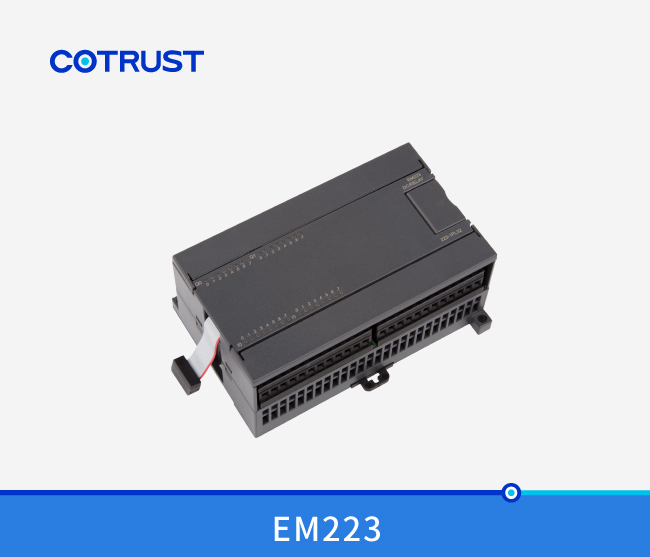

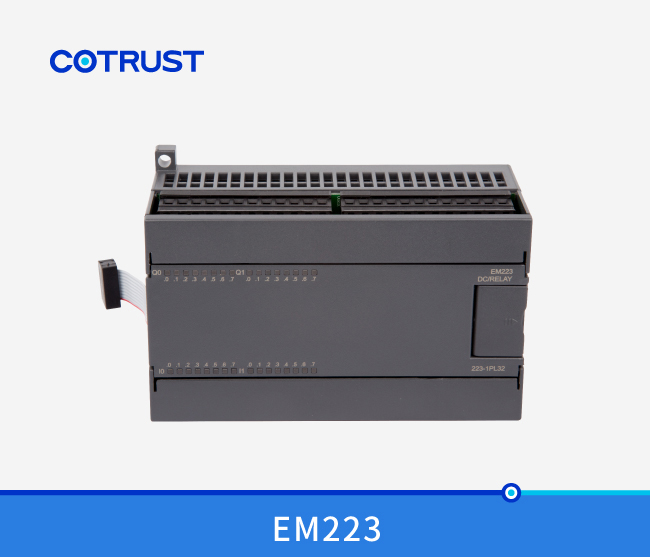

- Product Description
-
Order Data
Order Data Order No.
CTSC-200 EM223 Digital I/O Modules,4 DI×24V DC, 4 DO×24V DC CTS7 223-1HF32 CTSC-200 EM223 Digital I/O Modules,8 DI×24V DC, 8 DO×24V DC CTS7 223-1PH32 CTSC-200 EM223 Digital I/O Modules,16DI×24V DC, 16DO×24V DC CTS7 223-1PL32
- Technical Spec
-
Performance Parameters
Specifictaion
EM223
4 DI / 4 DO, RELAYEM223
8 DI / 8 DO, RELAYEM223
16 DI / 16 DO, RELAYPhysical Features
Dimensions(W×H×D) 46×80×62mm 71.2×80×62mm 138×80×62mm Power loss(dissipation) 2W 3W 5W From +5V (from I/O bus)
40 mA
80 mA 160 mA Input Features Number of integrated inputs 4 inputs 8 inputs 16 inputs Input type Sink/Source(IEC Type 1 sink) Input Voltage Maxumum continuous permissible 30 VDC Surge 35 VDC for 0.5 s Rated value 24 VDC at 4 mA, nominal Logic 1 signal(minimum) 15 VDC at 2.5 mA, minimum Logic 0 signal(maximum) 5 VDC ata 1mA, maximum Isolation(Field Side to Logic Circuit) Optical isolation(Galvanic) 500 VAC for 1 minute Isolation groups of 4 points 4 points 8 points Maximum input delay times 4.5ms Connection of 2 Wire Proximity Sensor(Bero) Premissible leakage current 1 mA, maximum Cable Length Unshielded(not HSC) 300 m 300 m 300 m Shielded 500 m 500 m 500 m Number of inputs ON Simultaneously 40℃ 4 8 16 50℃ 4 8 16 Output Features
Number of integrated outputs 4
8
16
Output type Relay, dry contac Output Voltage
DC: 5~30V, AC: 5~250V
Output Current
Logic 1 signal
Number of output groups
Per group mounting (maximum)
Number of output ON (maximum)
Maximum current per group
Lamp load
contact resistance
Surge current
Overload protection
2A
2
4
8
8A
5W
0.2 ohm
8A for 100ms, maximum
No
Isolation
In group of
Isolation coil to contact
Isolation between open contactsIsolation resistance
4 points
1500 VAC for 1minute
750 V AC for 1 minute
100M ohm, minimum when new
Relay Features
Switch delay
Switch Frequency
Lifetime mechanical (no load)
Lifetime contacts at rated load
15ms, maximum
1HZ
20,000,000 open/close cycles
300,000
Cable Length
Unshielded
150 m
Shielded
500 m
Power Consumption From +5V(from I/O bus)
40 mA
80 mA 160 mA From L+ 9 mA per output when ON L+ coil power voltage range 20.4－28.8V DC
- Installation
-
Size Diagram
1.CTS7 223-1HF32
2.CTS7 223-1PH32
3.CTS7 223-1PL32
Wiring Diagram
