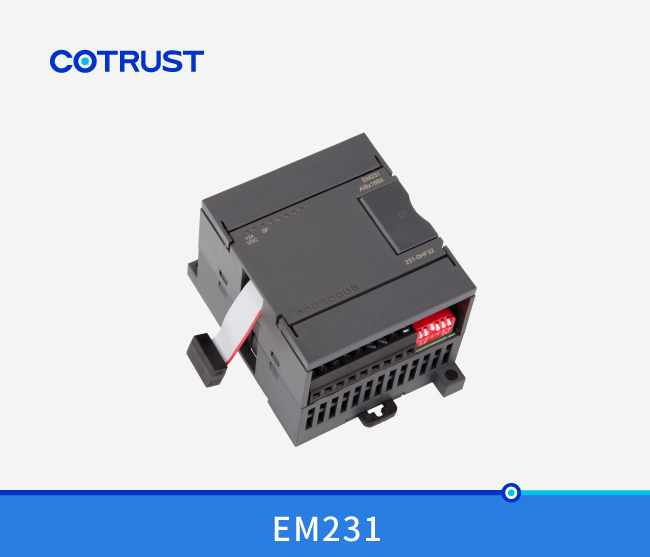

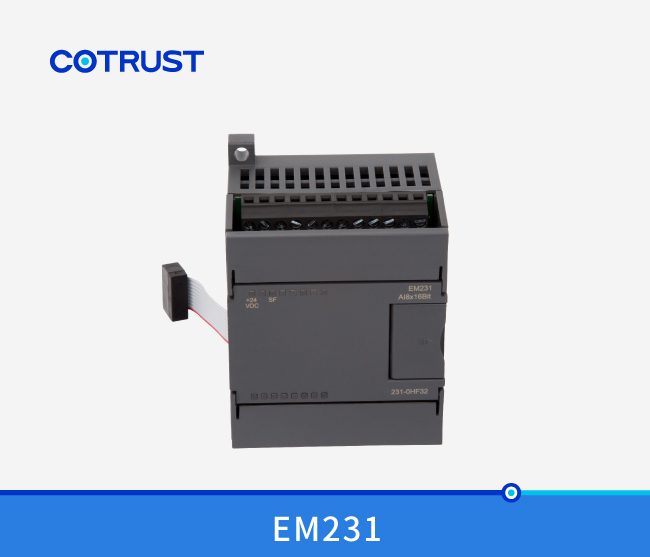

EM231 High Precision Analog Input(231-0HF32)

8AI*16BIT, Voltage Input,Optical coupling isolation,powerful anti-interference.Sampling frequency 200 HZ,stable and accurate.

Order No.:CTS7 231-0HF32

Specification:8AI*16BIT,Voltage Input,Optical coupling isolation

Product Description

Order data

Order Data

Order No.

CTSC-200 EM231, 8AI×16BIT, Voltage Input, IsolationCTS7 231-0HF32


Technical Spec

Performance Parameters

Specification
EM231, 8 AI×16BIT
Physical Features
   Dimensions(W×H×D)
71.2×80×62mm
   Power Loss(dissipation)
1W
Power Consumption
    From +5V(from I/O bus)
25 mA
    From L+
30 mA
    L+  voltage range,class 2 or DC sensor supply
20.4~28.8V DC
    LED indicator
24 VDC Power Supply  Good
                       ON = no fault,
                       OFF = no 24 VDC power
Analog Input Feature
   Number of analog input points
8 points
    Isolation(field side to logic circuit)
500V AC for 1 minute
    input type
Differential
Input Range
        current ( unipolar )
0—20mA 、4—20mA
        Data Range

        Bipolar, full-scale range
0~32000
Input Resolution
    Current (unipolar)
0.000625mA (0~20mA)
0.0005mA (4~20mA)
    Analog to digital conversion time
About 10ms
    Analog input step response
About 80ms
    Common mode rejection
40dB,DC to 60Hz
    Common mode voltage
Signal voltage plus Common mode voltage must be ≤±12V
    Input Impedance
250Ω
    Input filter attenuation
-3db @ 3.1kHz
    Maximum input voltage
--
    Maximum input current
30mA
    ADC resolution
16BIT
Calibration and Configuration
  • Location of the calibration and configuration switch


  • Configuration

Table 1 shows how to configure the EM 231 module using the configuration DIP switches. Switches 1, 2, and 3 select the analog input range. All inputs are set to the same analog input range. In this table, ON is closed, and OFF is open. (SW4 to SW6 should be set to the OFF position)
Table 1   EM 231 Configuration Switch Table to select Analog Input Range
Unipolar
Full-Scale Input
Resolution
SW1
SW2
SW3
OFF
OFF
OFF
0 to 20mA
0.000625mA
OFF
ON
4 to 20mA
0.0005mA
  • Software Configuration

  • The EM231 8AI module has different beginning input address in different slot and its address is not in AIW but in VW, you can calculate the address by the following formula,
                       x(VWx) = a × 64 + b × 2  (a is the slot no., and b is the point no.)
    Table 2  Address for the EM231 8AI
    VWx
    Point 0
    Point 1
    Point 2
    Point 3
    Point 4
    Point 5
    Point 6
    Point 7
    Slot 0
    VW0
    VW2
    VW4
    VW6
    VW8
    VW10
    VW12
    VW14
    Slot 1
    VW64
    VW66
    VW68
    VW70
    VW72
    VW74
    VW76
    VW78
    Slot 2
    VW128
    VW130
    VW132
    VW134
    VW136
    VW138
    VW140
    VW142
    Slot 3
    VW192
    VW194
    VW196
    VW198
    VW200
    VW202
    VW204
    VW206
    Slot 4
    VW256
    VW258
    VW260
    VW262
    VW264
    VW266
    VW268
    VW270
    Slot 5
    VW320
    VW322
    VW324
    VW326
    VW328
    VW330
    VW332
    VW334
    Slot 6
    VW384
    VW386
    VW388
    VW390
    VW392
    VW394
    VW396
    VW398
    Note:  Because the offset address of Td2X text display is also in VW0, so If you need to use Td2X text display in your system, please don’t put the EM231 8AI×TC module in slot 0, or the td2X will not work normally. SIEMENS TD200 text displayer is same as TD2X.(SIEMENS is the trademark of SIEMENS AG.)


Installation

Size  Diagram

Wiring Diagram
