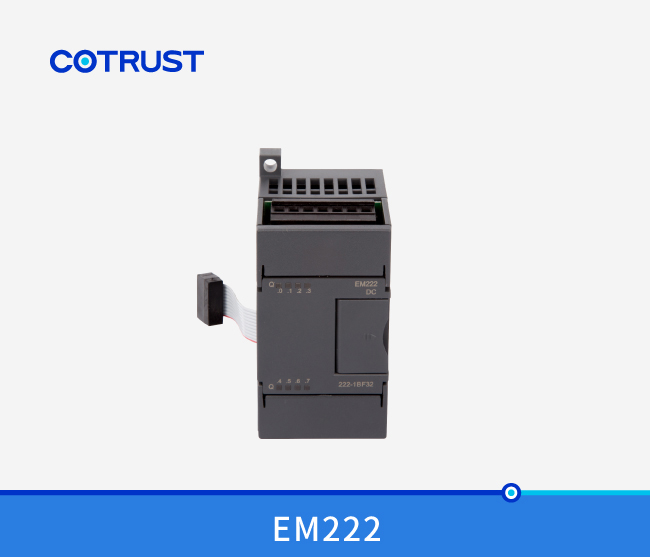

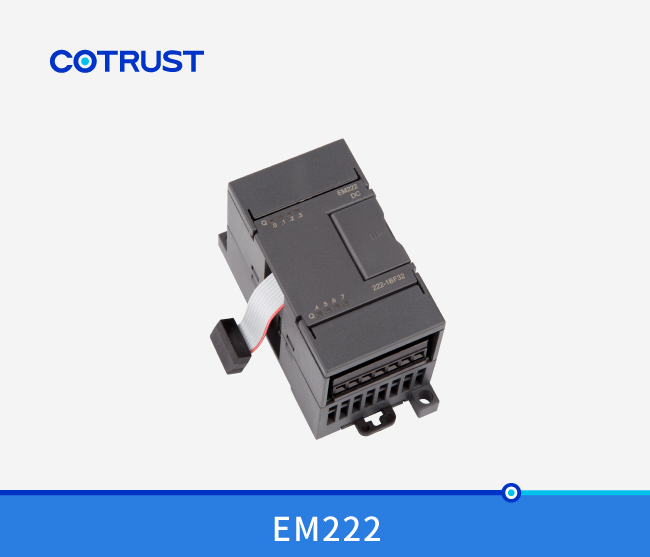

- Product Description
-
Order Data
Order Data Order No. CTSC-200 EM222 Digital Output Module, 8 outputs, DC 24V CTS7 222-1BF32 CTSC-200 EM222 Digital Output Module, 16 outputs, DC 24V CTS7 222-1BH32 CTSC-200 EM222 Digital Output Module, 32 outputs, DC 24V CTS7 222-1BL32
- Technical Spec
-
Performance Parameters
Description EM222, 8DO×DC 24V EM222, 16DO×DC 24V EM222, 32DO×DC 24V Physical Features Dimensions(W×H×D) 46×80×62mm 71.2×80×62mm 138×80×62mm Power loss(dissipation) 2W 3W 5W From +5V (from I/O bus) 50 mA Output Features Number of integrated outputs 8 outputs 16 outputs 32 outputs Output type Solid State-MOSFET Output voltage Rated ValuePermissible RangeLogic 1 signal at maximum currentLogic 0 signal with 10 kohm load24V DC20.4~28.8V DC20V DC, minimum0.1VDC, maximumOutput Current Logic 1 signalNumber of output groupsPer group mounting (maximum)Number of output ON (maximum)Maximum current per groupLamp loadcontact resistanceLeakage current per pointSurge current0.5A2482A5W0.3 ohm10μA, maximum8A，100ms0.5A28164A5W0.3ohm10μA,maximum8A，100ms0.5A64/8322/4A5W0.3ohm10μA,maximum8A，100msIsolation 500V AC for 1 minute In group of 4 points 8 points 4/8 points Output Delay Off to On
On to Off50 μs, maximum200 μs, maximumCable Length Unshielded 150 m Shielded 500 m
- Installation
-
Size Diagram
1.CTS7 222-1BF32
2.CTS7 222-1BH32
3.CTS7 222-1BL32
Wiring Diagram
