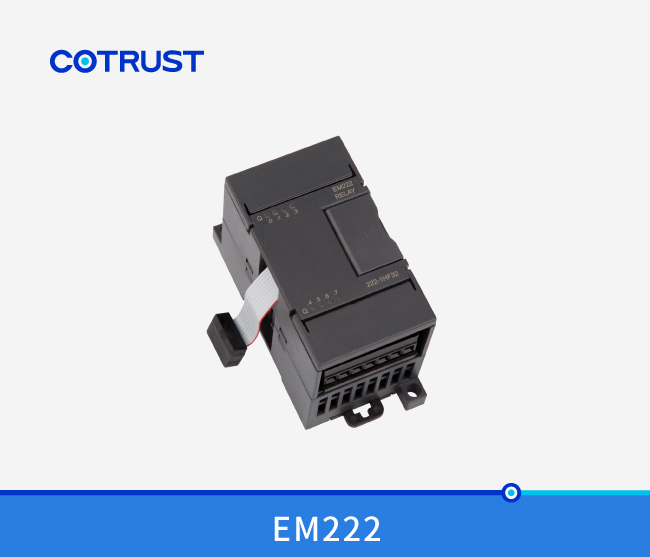

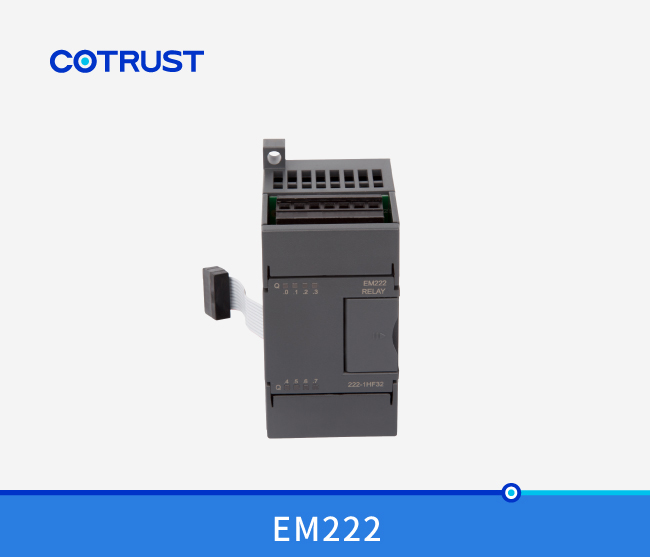

Relay output module,8DO/16DO×Relay,2A.with absorption surge circuit

Order No.：CTS7 222-1HF32/CTS7 222-1HH32

Specification：8DO/16DO×Relay

Product Description

Order Data

Order Data	Order No.
CTSC-200 EM222 Digital Output Modules, 8 Relay Output	CTS7 222-1HF32
CTSC-200 EM222 Digital Output Modules, 16 Relay Output	CTS7 222-1HH32

Technical Spec

Performance Parameters

Description	EM222, 8DO×RELAY	EM222,16DO×RELAY
Physical Features
Dimensions (W×H×D)	46×80×62mm	71.2×80×62mm
Power loss (dissipation)	2W	3W
Output Features
Number of integrated outputs	8	16
Output type	Relay, dry contact
Output Voltage	DC：5～30V，AC：5～250V
Output Current
Logic 1 signal Number of output groups Per group mounting (maximum) Number of output ON (maximum) Maximum current per group Lamp load contact resistance Surge current Overload protection	2A 2 4 8 8A 5W 0.2 ohm 8A for 100ms, maximum No	0.5A 4 4 16 8A 5W 0.2 ohm 7A with contacts closed No
Isolation
In group of Isolation coil to contact Isolation between open contacts Isolation resistance	4 points 1500 VAC for 1minute 750 V AC for 1 minute 100M ohm, minimum when new
Relay Features
Switch delay Switch Frequency Lifetime mechanical (no load) Lifetime contacts at rated load	15ms, maximum 1HZ 10,000,000 open/close cycles 100,000
Cable Length
Unshielded	150 m
Shielded	500 m
Power Consumption
From +5V(from I/O bus) From L+ L+ coil power voltage range	40 mA 9 mA per output when ON 20.4 to 28.8 VDC

Installation

Size Diagram
