- Product Description
-
Order Data
Specifications
Order No.
CTSC-200 CPU224I,24VDC Power Supply,14DI*10DO,Transistor output,0.75A,16KB Program Memory/108KB Data Memory,1*PPI,1*FPORT,1*Ethernet port. CTS7 214-1AD41-0X24
- Technical Spec
-
Performnce Parameters:
Physical Features
Dimension（W×H×D）
137×80×62mm
Power dissipation
7W
Memory Features
Program memory
12KB，can be expand to 16K
Data memory
8KB，can be expand to 108KB
Power-off protection time（super capacitor ）
112 hours(typical)
External battery (Optional)
200 days(typical)
General Features
Counters total 256(super capacitor backup)
Internal memory bits
256(super capacitor backup)
Stored permanently on power down
112 hours（typical）
Time Interrupts
2 with 1ms resolution
Edge Interrupts
4 rising edges and/ or 4 falling edges
Analog adjustment
2 with 8 resolution
Boolean execution speed
0.15µs
Float execution speed
8µs
Clock
Embedded
Rated voltage
220VAC
Power supply
Native and extended bus+5V
+5V
+24V
1A
10mA
300mA
Integrated Communication Function
Communication port
2 communication ports ，PORT0:PPI/Free port，RS485；FPORT1:PPI/freeport， RS485 PWL
PPI baud rates(baud)
9.6k、19.2k and187.5k
Freeport baud rates (baud)
1.2k ~ 115.2k
Maximum cable length per segment
Isolated repeater applied
Isolated repeater unapplied
When it is 1000 m, baud rate is 187.5k; when it is
1200 m, 38.4k.
50 m
Maximum number of stations
32 stations per segment,126 stations per network
Maximum number of masters
32
Point to point (PPI Master Mode)
Yes(NWTR/NETW), 8 total, 2 reserved
Ethernet Function
Communication port
1 Ethernet port
Communication standard
IEEE802.3 standard
Communication speed
10Mbps and 100Mbps self-adaption
Adaptive cross connection
Non support
Interface to industrial Ethernet(10/100Mbps)
RJ45
Protocol type
UDP/TCP protocol
Support MICO Ethernet programming, support Ethernet communication between PLC.
Collocation method
Support the upper computer through the Ethernet
port search PLC, support the mouth download
system configuration.
Max Connections
Each PLC supports up to 8 UDP connections and
up to 4 TCP connections.
The maximum number of IT connections
8 UDP_PPI connections, with 4 master stations and 4 slave stations.
4 ModBus_TCP connections, 2 master stations and 2 slave stations.
User data number
Up to 200 bytes are used for TCP/IP transmission.
Up to 240 bytes are used for ModBus_TCP transport.
Port
local：1~65535
remote server：8888
Boot time or restart time after reset
3 seconds
Indicator lamp
Green RMC indicator: on: remote control in effect,
off: remote control out
Green Ethernet indicator: on: connection,
flicker: transmission; out: not connected
Maximum cable length
100m
Isolation
Communication port
I/O Feature
Number of integrated digital inputs
14
Input type
Sink/Source
Number of integrated digital outputs
10
Output type
Solid-MOSFET
Digital I/O mapping domain
128DI/128DQ
Analog I/O mapping domain
32AI/32AQ
Maximum number of expandable I/O modules
7
Pulse catch inputs
14
High-speed counters
Total
Uniphase counters
Bi-phase counters
6
6×50KHz
4×30KHz
Digital Input Features
Number of integrated digital input
14
Input type
Sink/ Source
Rated voltage
24V DC
Input voltage range
20.4~28.8V DC
Surge voltage
35V DC，continuously 0.5s
Logical 1 Signal (minimum)
Logical 0 Signal (Maximum )
15 VDC，2.5mA
5 VDC，1mA
Connect 2 wire proximity switch sensor (BERO)
Allowable leakage current (maximum)
1mA
Input filter
support 0.2ms，0.4ms，0.8ms，1.6ms，3.2ms，6.4ms，12.8ms，default 6.4ms
Isolation(field side to logical circuit)
Isolation groups
500V AC，1min
refer to wiring diagramSimultaneous input
36
Maximum cable length
Shielded
Unshielded
500 M(standard input)
50 M(high-speed counters input)
300 M(standard input)
Digital Output Features
Number of integrated digital output
10
Output type
Solid-MOSFET,source
Rated voltage
24VDC
Output voltage range
20.4～28.8VDC
Logical 1 Signal (minimum)
20VDC,max current
Logical 0 Signal (Maximum)
0.1V DC，10KΩ load
Rated current per point
0.75A
Rated current for each common point
6A
Leakage current (maximum)
10uA
Surge current(Maximum)
8A,100ms
Lamp load (maximum)
5W
On resistance (contact)
Typical 0.3Ω,max 0.6Ω
Isolation(field side to logical circuit)
500VAC,1mins
Delay
Off to on：2us（Q0.0, Q0.1），---15us
on to off：10us（Q0.0, Q0.1），---130u
High speed pulse output
Maximum frequency
Motion control library instruction: 2* 50KHz Pulse (Q0.0,Q0.1),Dir (Q0.2,Q0.3)
PTO/PWM: 2 *20KHz (Q0.0,Q0.1)
Simultaneous input
10
Parallel output
Only when the outputs are in the same group
Maximum cable length
Shielded
Unshielded
500m
150m
- Installation
-

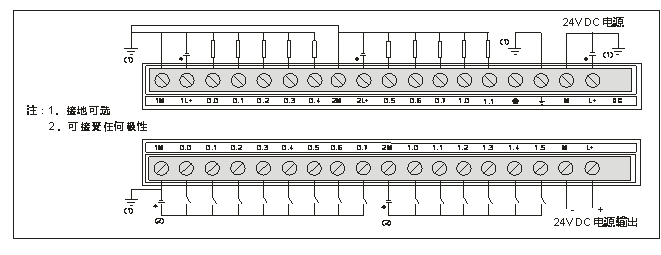

Wiring diagram
RS485 communication port definition
Connector
Pin
PORT1（RS485）
PORT0（RS485）
1
Shell Grounded
Shell Grounded
2
+24V Grounded
+24V Grounded
3
RS485+signal B
RS485+signal B
4
Send the application
Send the application
5
+5V Grounded
+5V Grounded
6
+5V，100Ω
+5V，100Ω
7
+24V
+24V
8
RS485-signal A
RS485-signal A
9
NC
NC
Shell
Shell Grounded
Shell Grounded
Ethernet port definition
RJ45 port
PIN Signal
Signal definition
1
TX+
Data sending to the positive end
2
TX-
Data sending to the negative end
3
RX+
Data receiving from the positive end
4
TERM
--
5
TERM
--
6
RX-
Data receiving from the negative end
7
TERM
--
8
TERM
--
