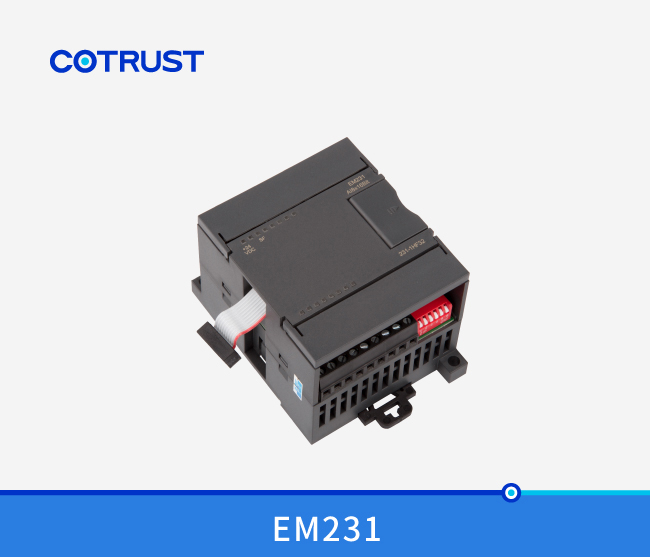

EM231 High Precision Analog Input(231-1HF32)

8AI*16BIT, Current Input,Optical coupling isolation,powerful anti-interference.Sampling frequency 200 HZ,stable and accurate.

Order No.:CTS7 231-1HF32

Specification:8AI*16BIT, Current Input,Optical coupling isolation

Product Description

Order Data

Order Data

Order No.

CTSC-200 EM231, 8AI×16BIT, Cutrrent Input, Isolation      CTS7 231-1HF32





Technical Spec

Performance Parameters

Specification
EM231, 8 AI×16BIT
Physical Features
   Dimensions(W×H×D)
71.2×80×62mm
   Power Loss(dissipation)
1W
Power Consumption
    From +5V(from I/O bus)
25 mA
    From L+
30 mA
    L+  voltage range,class 2 or DC sensor supply
20.4~28.8V DC
    LED indicator
24 VDC Power Supply  Good
                       ON = no fault,
                       OFF = no 24 VDC power
Analog Input Feature
   Number of analog input points
8 points
    Isolation(field side to logic circuit)
500V AC for 1 minute
    input type
Differential
Input Range
    Current ( unipolar )
0—20mA 、4—20mA
    Data Range

     Bipolar, full-scale range
0~32000
Input Resolution
   current (unipolar)
0.000625mA (0~20mA)
0.0005mA (4~20mA)
    Analog to digital conversion time
About 10ms
    Analog input step response
About 80ms
    Common mode rejection
40dB,DC to 60Hz
    Common mode voltage
Signal voltage plus Common mode voltage must be ≤±12V
    Input Impedance
250Ω
    Input filter attenuation
-3db @ 3.1kHz
    Maximum input voltage
--
    Maximum input current
30mA
    ADC resolution
16BIT



Calibration and Configuration
  • Location of the calibration and configuration switch




  • Configuration

Table 1 shows how to configure the EM 231 module using the configuration DIP switches. Switches 1, 2, and 3 select the analog input range. All inputs are set to the same analog input range. In this table, ON is closed, and OFF is open. (SW4 to SW6 should be set to the OFF position)
Table 1   EM 231 Configuration Switch Table to select Analog Input Range
Unipolar
Full-Scale Input
Resolution
SW1
SW2
SW3
OFF
OFF
OFF
0 to 20mA
0.000625mA
OFF
ON
4 to 20mA
0.0005mA
  • Software Configuration

  • The EM231 8AI module has different beginning input address in different slot and its address is not in AIW but in VW, you can calculate the address by the following formula,
                       x(VWx) = a × 64 + b × 2  (a is the slot no., and b is the point no.)
    Table 2  Address for the EM231 8AI
VWx
Point 0
Point 1
Point 2
Point 3
Point 4
Point 5
Point 6
Point 7
Slot 0
VW0
VW2
VW4
VW6
VW8
VW10
VW12
VW14
Slot 1
VW64
VW66
VW68
VW70
VW72
VW74
VW76
VW78
Slot 2
VW128
VW130
VW132
VW134
VW136
VW138
VW140
VW142
Slot 3
VW192
VW194
VW196
VW198
VW200
VW202
VW204
VW206
Slot 4
VW256
VW258
VW260
VW262
VW264
VW266
VW268
VW270
Slot 5
VW320
VW322
VW324
VW326
VW328
VW330
VW332
VW334
Slot 6
VW384
VW386
VW388
VW390
VW392
VW394
VW396
VW398

Note:  Because the offset address of Td2X text display is also in VW0, so If you need to use Td2X text display in your system, please don’t put the EM231 8AI×TC module in slot 0, or the td2X will not work normally. SIEMENS TD200 text displayer is same as TD2X.(SIEMENS is the trademark of SIEMENS AG.)

Installation

Size Diagram

Wiring Diagram
