- Product Description
-
Order Data

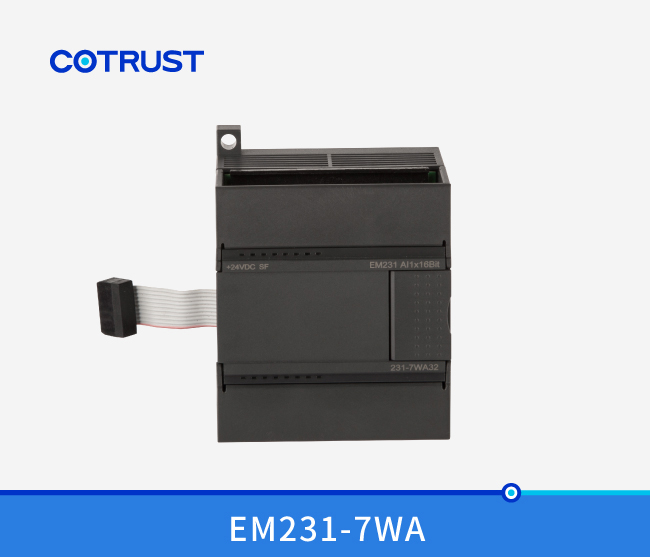

Order Data Order No. EM231 Uni-channel weighing transducer, 16Bit, sampling rate50Hz,0.01% module accuracy CTS7 231-7WA32
- Technical Spec
-
Performance Parameters
Specification
CTS7 231-7WA32
Number of Channels
1
Sampling rate
50HZ
24V
voltage rating
Voltage Range
Maximum current consumption
Typical power consumption
Current consumption 5V bus from the CPU
Typical<140mA
LED indicator lights
POWER: indicator:ON=24VDC,normal power supply,OFF=no 24VDC power
SF: flash=transducer break,OFF=no error
Internal resolution
65536(16bit)
Weight value data format
2 Byte
Noise suppression
85db@50Hz/60Hz
Isolation characteristics
Site to logic
500V AC
Site to 24V DC
500V AC
24V DC to logic
500V AC
Common Mode Rejection
>120dB@120V AC
Configurable filters
The limit frequency of the low-pass filter
0.05Hz,0.1Hz,0.2Hz,0.5Hz,1Hz,2Hz,5Hz
Average Filter
0~255
Connections of weighing transducer
Connections
4 or 6-wire wiring
The wire length to the transducer
Maximum 500 meters
Full-scale error limit(20℃±10℃)
≤0.01%
Sensitivity
1mV/V,2mV/V,4mV/V
Linearity error
≤0.01%FS
Common Mode Rejection
CMRR@50Hz/60Hz
Typical 80db
Insulation
500V DC
Power of weighing transducer
Voltage
current
DC6V
150mA
Permitted weighing transducer resistance value
No Vent
Vent
>40Ω，<4010Ω
>87Ω，<4010Ω
- Installation
-
Wiring Diagram
