- Product Description
-
Order Data
Order Data Order No.
CTSC-200 EM231, 2PT100/2NTC, 16BIT,Isolation CTS7 231-7ND32 CTSC-200 EM231, 8PT100/8NTC, 16BIT,Isolation CTS7 231-7NF32
- Technical Spec
-
Performance Parameters
Order No.
CTS7 231-7ND32
Power
0.8W
Power Consumption
+5VDC Power loss
0.12W
L+
37mA
L+Coil voltage range
20.4－28.8VDC
LED indicator
24VDC Power supply indicator: ON = no fault, OFF = no power；
SF indicator，ON=module fault, Blink=input signal error, OFF=normal;
Input sign
RTD/PTC/NTC input range
RTD type（choose one）：
Pt-100 (3850PPm,3920PPm,3850.55PPm,3916PPm,3902PPm)
NTC(R25=10K B=3950, 25=10K B=3435)
Voltage input
-5V----5V,-10V---10V,0V---5V,0V---10V
Current input
0---20mA
Input number
2PT100/2NTC和2AI
Isolation
Field side to logical circuit
500VAC
Field side to 24VDC
500VAC
24VDC tological circuit
500VAC
Common mode input range（input channel to input channel）
0
Common mode rejection
>120dB@120VAC
Sample Features
Temperature resolution
0.1℃/0.1℉
Voltage resolution
15bit+sign bit
Measuring principle
Sigma-Delta
Module update time（all channel）
425ms
Wire length to sensor
Max. 100m
Wire loop resistance
20Ω
Noise suppression
85db@50Hz/60Hz/400Hz
Data format
Voltage：－32000 to ＋32000
Input impedance
>10MΩ
Max.voltage input
30VDC，5VDC
Resolution
15bit+sign bit
Input filter attenuation
－3db@21KHz
Error
0.05％Fs（resistance）
Repeatability
0.1％Fs
Input type
SW1
SW2
SW3
SW4
SW5
100 pt0.003850(Default)
0
0
0
－
－
100Ω pt0.003920
0
0
1
－
－
100Ω pt0.00385055
0
1
0
－
－
100Ω pt0.003916
0
1
1
－
－
100Ω pt0.003902
1
0
0
－
－
NTC R25=10K, B=3950
1
0
1
－
－
NTC R25=10K, B=3435
1
1
0
－
－
備用
1
1
1
－
－
0－5V
－
－
－
0
0
0－20MA
－
－
－
0
0
0－10V
－
－
－
0
1
-10V－10V
－
－
－
1
0
-5V－5V
－
－
－
1
1
Order No.
CTS7 231-7NF32
Dimension（W×H×D）
120.5 x 80 x 62
Power Consumption
1.8W
Power loss
+5VDC Power loss
60mA
L+
32.5mA
L+oil voltage range
20.4-28.8VDC
LED indicator
+24VDC indicator
ON = no fault, OFF = no power，all date of channel 32766
SF indicator
Blink=input signal error, OFF=normal;
Input sign
Pt100：α=3850PPm/3920PPM/3850.55PPM/3916PPM/3902PM
NTC：R25=10k/B=3950或R25=10k/B=3435
Temperature measurement rang
Pt100：-50℃～800℃
NTC（R25=10k/B=3950）：-40～120℃
NTC（R25=10k/B=3435）：-40～150℃
Input number
8PT100/8NTC
Isolation
Field side to logical circuit
500VAC
Field side to 24VDC
500VAC
24VDC tological circuit
500VAC
Noise suppression
85dB@50/400 Hz
Common mode rejection
120dB@120VAC
Resolution
0.1 ℃ / 0.1 ℉
Measuring accuracy
±0.3℃
Measuring principle
SIGMA-DELTA
Length of cable max
100 m
Wire loop resistance max
20Ω
Update time
825 ms
Disconnection detection
Pt100 detect 3 wires （NTC detect 2 wires），detection time is no mare than 3 minutes
Input type
SW1
SW2
SW3
100Ω Pt 0.003850（default）
0
0
0
100Ω Pt 0.003920
0
0
1
100Ω Pt 0.00385055
0
1
0
100Ω Pt 0.003916
0
1
1
100Ω Pt 0.00302
1
0
0
NTC R25=10K/B=3950
1
0
1
NTC R25=10K/B=3435
1
1
0
Forbid
1
1
1
VWxx
Channel 0
Channel 1
Channel 2
Channel 3
Channel 4
Channel 5
Channel 6
Channel
7
Slot 0
VW0
VW2
VW4
VW6
VW8
VW10
VW12
VW14
Slot 1
VW64
VW66
VW68
VW70
VW72
VW74
VW76
VW78
Slot 2
VW128
VW130
VW132
VW134
VW136
VW138
VW140
VW142
Slot 3
VW192
VW194
VW196
VW198
VW200
VW202
VW204
VW206
Slot 4
VW256
VW258
VW260
VW262
VW264
VW266
VW268
VW270
Slot 5
VW320
VW322
VW324
VW326
VW328
VW330
VW332
VW334
Slot 6
VW384
VW386
VW388
VW390
VW392
VW394
VW396
VW398
- Installation
-
Size Diagram

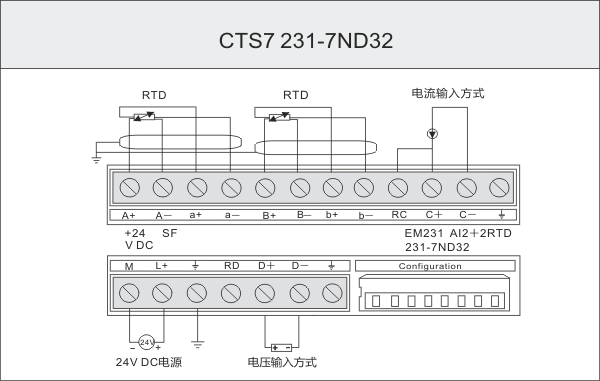

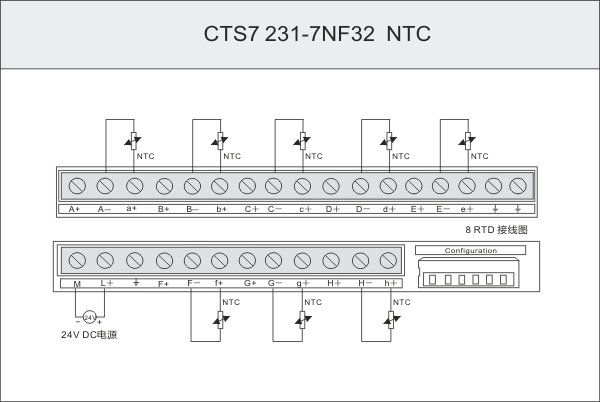

Wiring Diagram
